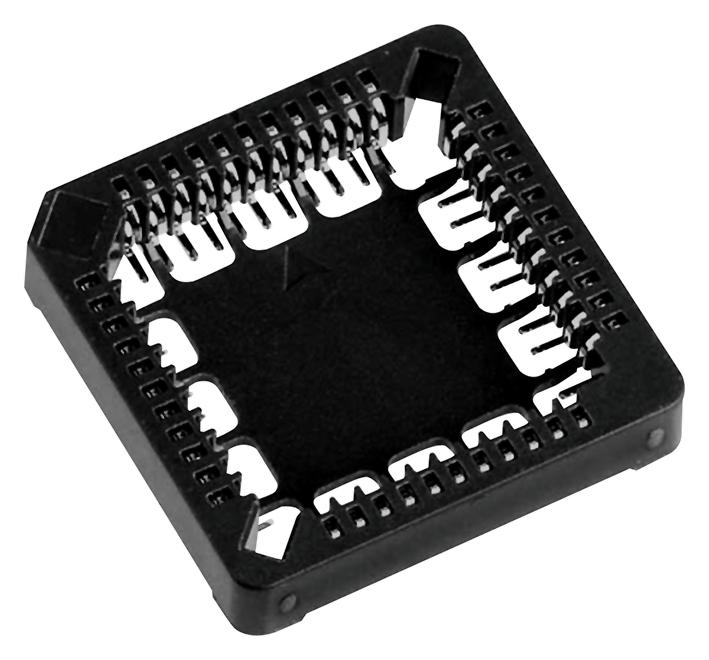

3M 842821B1RKTR Chip Carrier Socket
The 3M Chip Carrier Socket Series 8400 is a high-temperature, surfacemount socket designed for JEDEC-compatible chip carriers, supporting both square and rectangular outlines. Made from glass-filled polyphenylene sulfide insulator with UL 94V-0 flammability rating, it features copper alloy contacts with matte tin plating for reliable electrical connections. Suitable for IR reflow and wave soldering, these sockets accommodate a wide temperature range from -40°C to +105°C. They include optional PCB locating posts and molded slots for easy device extraction, ensuring robust performance in industrial and electronics manufacturing applications.
3M 842821B1RKTR Chip Carrier Socket Specifications:
- Insulation Material: Glass Filled Polyphenylene Sulfide (PPS)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Underplating: 50 y" [ 1.27 um | Nickel - Overall
- Wiping Area: 160" [4.06 um ] Matte Tin
- Contact Resistance: 15 mΩ
- Insulation Resistance: >10° MQ minimum
- Capacitance: <1 pF at 1 MHz
- Temperature Rating: -40°C to +105°C
- Process Rating: Max 260°C, single pass, profile per J-STD-020C
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the 3M 842821B1RK – Reliable Chip Carrier Sockets for Industrial Applications
Enhance your electronic assembly with the 3M Chip Carrier Socket from the 8400 series. Engineered for high-temperature environments, it features durable materials, optional PCB locating posts, and an open top design for unrestricted airflow. Compatible with JEDEC outlines, it ensures secure, reliable connections for chip carriers. Suitable for IR reflow and wave soldering processes, this socket delivers ease of installation and extraction with molded slots, making it ideal for demanding industrial and electronic applications requiring robust, long-lasting performance.
Buy 3M 842821B1RK now and experience unmatched reliability and high-temperature performance for your industrial electronics assembly.
Frequently Asked Questions
Where can I buy 3M 842821B1RKTR?
You can click on the BUY or RFQ button to purchase 842821B1RKTR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 842821B1RKTR?
You can download the 842821B1RKTR datasheet or visit the 3M website for support.
Who is the manufacturer of 842821B1RKTR?
3M
