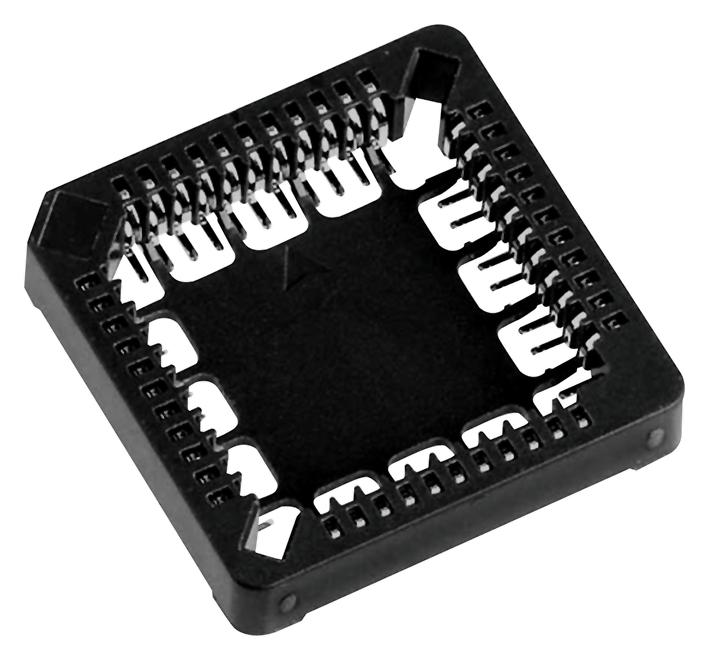

3M 844421A1RKTP Chip Carrier Socket
This is a surface-mount electronic component suitable for various applications. It offers reliable performance in compact circuit designs, featuring high-temperature insulator compatible with IR reflow and wave soldering. The socket accepts chip carriers conforming to JEDEC outlines MO-047 for square and MO-052 for rectangular shapes, with molded slots for easy removal. Made from glass-filled PPS, it provides excellent thermal stability and complies with RoHS standards. The contacts are copper alloy with matte tin plating, ensuring low contact resistance and durability in demanding electronic environments. Its environmental rating supports operation from -40°C to +105°C, making it ideal for sensitive and high-temperature electronics.
3M 844421A1RKTP Chip Carrier Socket Specifications:
- Insulation Material: Glass Filled Polyphenylene Sulfide (PPS)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Underplating: 50 µ
- Contact Resistance: 15 mQ
- Insulation Resistance: >10 MQ minimum
- Capacitance: <1 pF at 1 MHz
- Temperature Rating: -40°C to +105°C
- Process Rating: Max 260°C, single pass, profile per J-STD-020C
- Moisture Sensitivity Level: Level 1 (per J-STD-020C)
Buy the Buy 3M Chip Carrier Sockets Part Number 844421A1RKTP Online
Order the 3M chip carrier socket 844421A1RKTP online today for high-quality, RoHS compliant surface-mount solutions suitable for JEDEC chip carriers. Designed with durable copper alloy contacts plated in matte tin, it provides low contact resistance and consistent electrical performance. Made from glass-filled PPS, it withstands temperatures from -40°C to +105°C and soldering up to 260°C in single passes, making it ideal for demanding electronic assemblies. Simplify your manufacturing process with easy device extraction and optional PCB locating posts, ensuring secure, reliable electrical connections.
Buy 3M 844421A1RKTP socket now and ensure reliable connections with high-temperature tolerance and easy device removal.
Frequently Asked Questions
Where can I buy 3M 844421A1RKTP?
You can click on the BUY or RFQ button to purchase 844421A1RKTP from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 844421A1RKTP?
You can download the 844421A1RKTP datasheet or visit the 3M website for support.
Who is the manufacturer of 844421A1RKTP?
3M
