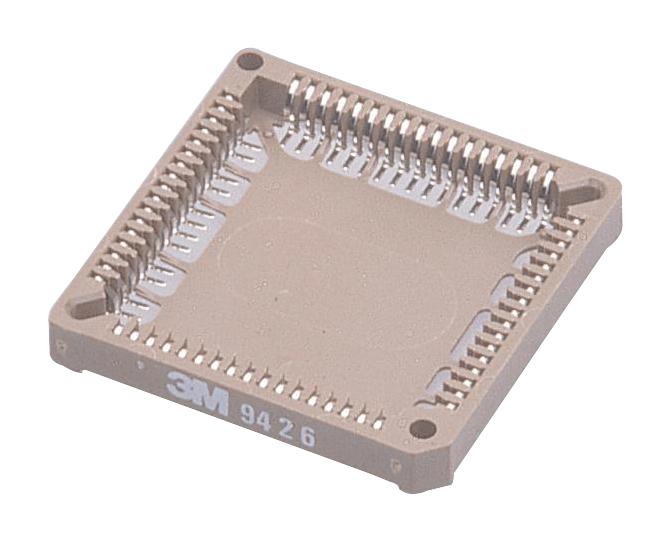

3M 846821B1RKTR Chip Carrier Socket
The 3M™ Chip Carrier Sockets 8400 Series are surface-mount electronic interconnect solutions designed for JEDEC-compatible chip carriers, including MO-047 and MO-052 outlines. Made from high-temperature insulator material, these sockets support IR reflow and wave soldering, making them suitable for automated assembly lines. They feature molded slots for easy device extraction, optional PCB locating posts for precise alignment, and open top design for unrestricted airflow. RoHS compliant, they are suitable for a variety of electronics applications, offering reliable electrical performance and mechanical durability with copper alloy contacts and tin-lead plating.
3M 846821B1RKTR Chip Carrier Socket Specifications:
- Insulation Material: Glass Filled Polyphenylene Sulfide (PPS)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Wiping Area Plating: Matte Tin, 160"
- Underplating: 50 y" Nickel - Overall
- Contact Resistance: 15 mΩ
- Insulation Resistance: >10° MQ minimum
- Capacitance: <1 pF at 1 MHz
- Temperature Rating: -40°C to +105°C
- Process Rating: Max 260°C, single pass, per J-STD-020C
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the Buy 3M Chip Carrier Sockets Part Number 846821B1RKTR Online
Purchase the 3M Chip Carrier Sockets 8400 Series online today to enhance your electronic assembly with reliable, high-quality interconnect solutions. These sockets offer excellent durability with high-temperature insulators, robust copper alloy contacts, and tin plating for consistent electrical performance. Designed for JEDEC packages, they support IR reflow and wave soldering processes, making them ideal for automated manufacturing. Their open top, molded slots, and optional PCB locating posts provide easy installation and alignment, ensuring your electronic projects meet professional standards with RoHS compliance and excellent environmental resistance.
Buy 3M 846821B1RKTR chip carrier socket now and ensure reliable, high-temperature electronic connections with easy device extraction and RoHS compliance.
Frequently Asked Questions
Where can I buy 3M 846821B1RKTR?
You can click on the BUY or RFQ button to purchase 846821B1RKTR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 846821B1RKTR?
You can download the 846821B1RKTR datasheet or visit the 3M website for support.
Who is the manufacturer of 846821B1RKTR?
3M
