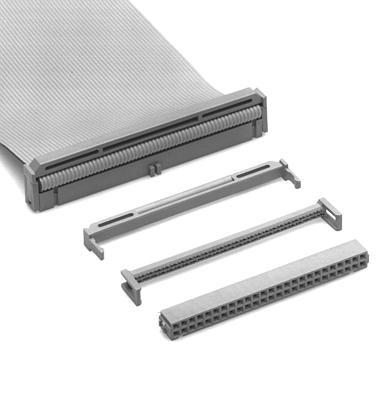

3M 891140003 IDC Ribbon Cable Socket
Preassembled wiremount for 0.050-inch pitch cable, with a 0.100-inch contact spacing, designed for reliable wire-to-board connections. Features include recessed cable exit, dual polarization slots, and optional strain relief. Constructed from gray PBT with UL 94V-0 flammability rating, it accommodates 26 and 28 AWG stranded wire with gold and nickel plating for excellent conductivity. Suitable for applications requiring robust electrical performance and easy assembly, it emphasizes polarization, connector locking, and component durability, meeting industry standards for high-performance electronic assemblies.
3M 891140003 IDC Ribbon Cable Socket Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: Nickel underplating, Gold wiping area
- Wire Range: 26 and 28 AWG stranded
- Insulation Resistance: 1000 V at sea level
- Temperature Rating: -55°C to +105°C
- Current Rating: 1A (varies with application)
- Dimensions: Contact spacing 0.100 inches, overall size compatible with 0.050-inch pitch cables
- UL File No.: E68080
- Operating Voltage: 1000 V
- Assembly Tools: 3M™ Press and locator plate for installation
Buy the Buy 3M IDC Ribbon Cable Socket Part Number 891140003 Online
Secure your electronic connections efficiently with the 3M IDC Ribbon Cable Socket, featuring preassembled design for easy installation, polarized slots for proper orientation, and durable materials. Ideal for high-density applications requiring reliable wire-to-board connections, it supports 26 and 28 AWG stranded wires with gold and nickel plating for optimal conductivity. The connector's compact size and robust construction make it perfect for automated assembly and high-performance electronic projects. Purchase online today to ensure seamless integration and dependable electrical performance in your devices.
Buy 3M IDC Ribbon Cable Socket 891140003 now and experience unmatched reliability and high-electrical performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy 3M 891140003?
You can click on the BUY or RFQ button to purchase 891140003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891140003?
You can download the 891140003 datasheet or visit the 3M website for support.
Who is the manufacturer of 891140003?
3M
