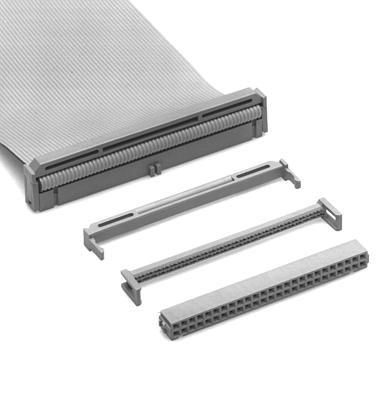

3M 891260003 IDC Ribbon Cable Socket
Preassembled wire mount with a 0.100-inch footprint designed for .050-inch pitch cables. Suitable for reliable electrical connections in various electronic applications.
3M 891260003 IDC Ribbon Cable Socket Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: Nickel 50 µin, Gold 30 µin
- Wire Accommodation: 26 and 28 AWG Stranded
- Current Rating: 425 mA (28 AWG), 4.50 A (26 AWG)
- Insulation Resistance: 100 MΩ minimum
- Withstanding Voltage: 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Dimensions: 0.100-inch footprint, suitable for .050-inch pitch cables
- Rated Voltage: 600 V
Buy the Buy 3M IDC Ribbon Cable Socket Part Number 891260003 Online
Order the 3M IDC Ribbon Cable Socket 891260003 online today for high-quality, preassembled wire mounting solutions. Designed for .050-inch pitch cables, it offers secure connections, strain relief, and dual polarization options. Perfect for electronic assembly, it simplifies wiring with easy loading, optional pull tabs, and preassembled packaging. Ensure reliable electrical performance in your projects with this durable socket. Purchase today and experience efficient, professional-quality cable management to enhance your electronic systems.
Get 3M IDC Ribbon Cable Socket 891260003 today—built for reliable electrical connections and secure cable termination.
Frequently Asked Questions
Where can I buy 3M 891260003?
You can click on the BUY or RFQ button to purchase 891260003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891260003?
You can download the 891260003 datasheet or visit the 3M website for support.
Who is the manufacturer of 891260003?
3M
