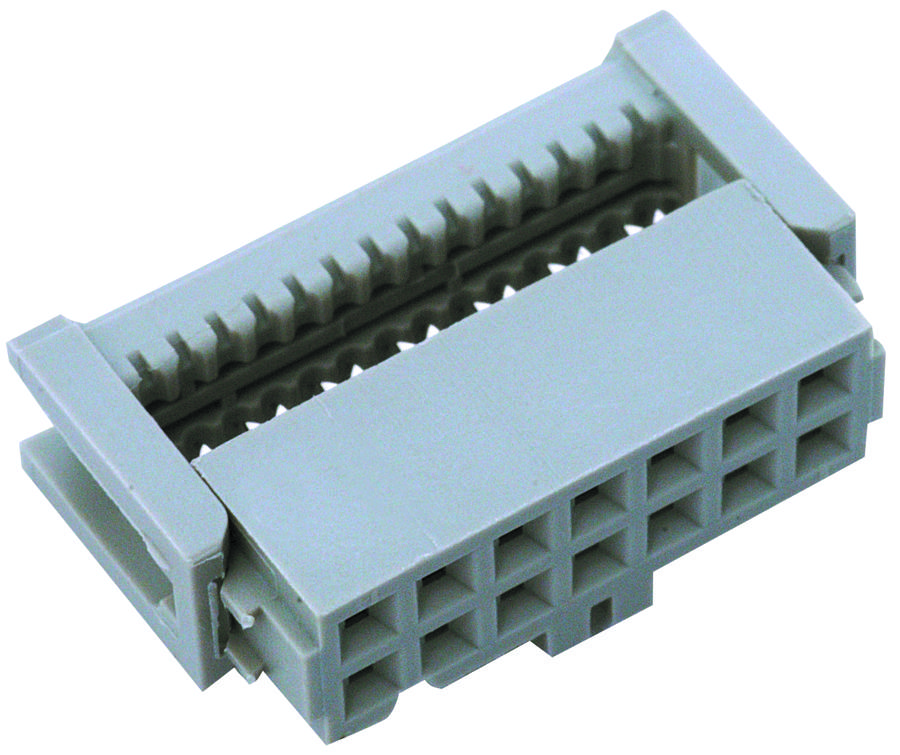

3M 891300101 Electrical Connector
Preassembled wiremount connector for 0.050-inch pitch cables, designed for secure and reliable electrical connections. This connector features a gray polyester insulation with UL 94V-0 flammability rating, phosphor bronze contacts plated with 50 microinches nickel and 30 microinches gold. It supports stranded wires of 26 and 28 AWG, with a current rating of 425 mA for 28 AWG and 4.50 mm² for 26 AWG. Designed for use in electronic solutions with options for strain relief and polarization, it ensures durability and easy assembly for industrial applications.
3M 891300101 Electrical Connector Specifications:
- Material: Glass Filled Polyester (PBT), UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: 50 microinches Nickel, 30 microinches Gold
- Wire Accommodation: 26 and 28 AWG Stranded
- Current Rating: 425 mA (28 AWG), 4.50 mm² (26 AWG)
- Temperature Rating: -55°C to +105°C
- UL File No.: E68080
- Dimensions: 100 inches x 0.100 inches pitch, various contact sizes with A and B dimensions from 0.43 to 1.93 inches
- Insulation Resistance: Not specified
- Withstanding Voltage: 1000 V at Sea Level
- Flammability: UL 94V-0
- Number of Contacts: 8, 14, 40, 50, 60 configurations available
- Assembly Tools: 3M Press, Locator Plate, Platen included
- Polarization Options: With or without centerbump
- Additional features: Preassembled packaging, optional strain relief, dual polarization, easy load, and locking design
Buy the 3M 891300101 – Reliable Connectors for Industrial Applications
Purchase the 3M connector 891 series online today and enjoy fast delivery and guaranteed quality. Designed for secure and reliable electrical connections, this preassembled connector features durable polyester insulation, gold and nickel plated contacts, and support for stranded wires. Ideal for industrial applications requiring robust wire termination, it offers optional strain relief and polarization options for versatile use. Elevate your electronic assemblies with this high-quality connector that assures durability, easy installation, and compliance with regulatory standards.
Order your 3M Series 891300101 connector today and give your electronic projects the dependable quality they deserve, ensuring secure and durable connections.
