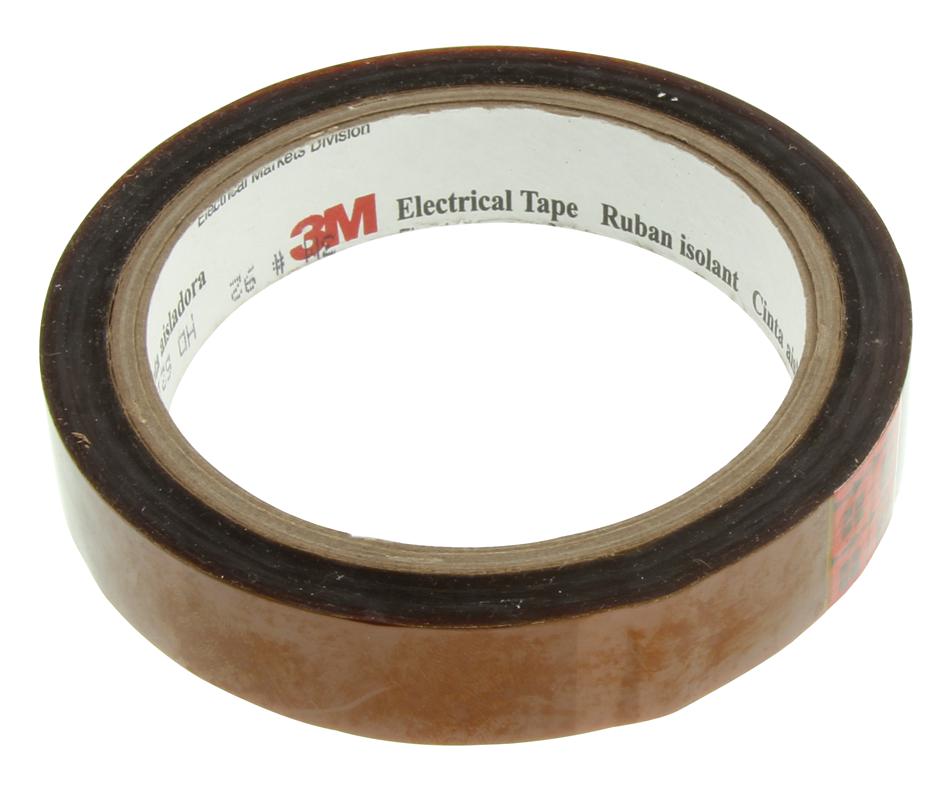

3M 9219MM Polyimide Tape
The 3M™ 92 Series Polyimide Film Electrical Tape features an amber-colored polyimide film backing with a silicone adhesive system, offering exceptional heat resistance and flexibility for low-temperature applications. The tape is 1 mil thick and can be imprinted, supplied on a 3-inch plastic core. Its silicone pressure-sensitive adhesive allows operation at temperatures up to 356°F (180°C). This high-temperature insulating tape is ideal for wrapping coils, transformers, capacitors, wire harnesses, and for anchoring leads or terminal boards. It is also used in printed circuit board assembly as a wave solder masking tape. The tape has a UL510 flammability rating, a dielectric breakdown voltage exceeding 7500V, and an insulation resistance greater than 1x10^14 ohms. Custom widths and configurations are available upon request.
3M 9219MM Polyimide Tape Specifications:
- Color: Amber
- Adhesive: Thermosetting Silicone
- Backing Thickness: 1.0 mils (0.025 mm)
- Overall Thickness: 3.0 mils (0.076 mm)
- Tensile Strength: 30 lbs / inch width (53 N / 10 mm)
- Elongation at Break: 55%
- Adhesion to Steel: 25 oz / inch width (2.8 N / 10 mm)
- Dielectric Breakdown: > 7,500 V
- Insulation Resistance: > 1x10^14 Megaohms
- Temperature Range: -40°F (-40°C) to 356°F (180°C)
- Shelf Life: 5 years when stored properly
- UL Recognized: UL 510 Flame Retardant
- Certificate: UL File No. E17385, Product Category OANZ2
Buy the 3M 9219MM – Reliable Polyimide Insulation Tape for Industrial Applications
Enhance your electrical insulation with the high-performance 3M Polyimide Tape. Designed for reliable, high-temperature applications, it efficiently wraps coils, transformers, and capacitor components. Its silicone adhesive offers excellent flexibility and resistance up to 356°F (180°C), ensuring long-term performance in challenging environments. Available in custom widths, this UL Recognized tape is ideal for PCB assembly, wire harnesses, and terminal board anchoring. Purchase online now for quick delivery and trust in proven 3M quality for your critical electrical systems.
Get 3M 9219MM today—built for high-temperature electrical insulation and long-lasting durability.
Frequently Asked Questions
Where can I buy 3M 9219MM?
You can click on the BUY or RFQ button to purchase 9219MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9219MM?
You can download the 9219MM datasheet or visit the 3M website for support.
Who is the manufacturer of 9219MM?
3M
