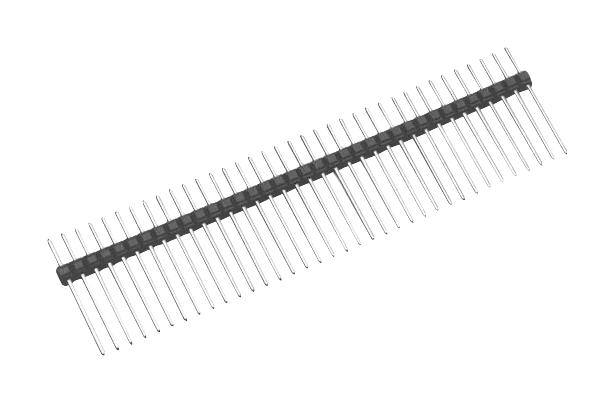

3M 9297000136RK Pin Strip Header
The 3M™ Pin Strip Header is a versatile interconnect component available in single and dual-row configurations. Designed with .100" and .235"/.318" mating lengths, it features straight and right-angle options with solder tails for robust PCB connections. Constructed from high-temp PCT or PBT plastic, it is UL 94V-0 rated for safety. Options include stackable design, gold, matte tin, or tin-lead plating, and a board pin retention feature. Suitable for wave or IR soldering, it offers high-temperature resistance, electrical performance up to 2.5A current, and environmental durability.
3M 9297000136RK Pin Strip Header Specifications:
- Insulation Material: PCT or PBT (UL 94V-0)
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Matte Tin, or Tin-Lead options
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT parts, maximum insulator temperature 191°C (Solder Wave Process)
- Moisture Sensitivity Level: Level 1
- Physical Dimensions: 0.100" and 0.235"/.318" mating lengths, straight & right angles options
- Flammability: UL 94V-0
- Board Pin Retention: Available as an option
- Application: PCB interconnects, wave or IR soldering
- Regulatory Compliance: RoHS compliant
Buy the Buy 3M Pin Strip Header Part Number 9297000136RK Online
Discover the high-quality 3M pin strip header, designed for reliable PCB connections in various configurations. Featuring high-temperature plastic, multiple plating options including gold and tin-lead, and both straight and right-angle options, this component ensures durability and optimal electrical performance. Its solder tails facilitate efficient wave or IR soldering processes, making it ideal for industrial and electronics manufacturing applications. Order online today to benefit from quick delivery, competitive pricing, and trusted quality for your assembly needs.
Buy 3M 9297000136RK pin strip header now and experience unmatched reliability and performance with high-temperature resistance and flexible configurations.
