3M 9297050136I Pin Header
The 3M™ Pin Strip Header Single and Dual Row 929 Series offers reliable electrical connectivity with options for gold, matte tin, or tin-lead plating. Designed with high-temperature PCT or PBT plastic, it features solder stand-offs for wave and IR soldering, board pin retention, and is available in straight or right-angle configurations with solder tails. The header supports current ratings up to 2.5A, withstands voltage of 1500V, and operates from -40°C to +105°C, making it suitable for various electronic applications requiring durable, high-temperature interconnect solutions.
3M 9297050136I Pin Header Specifications:
- Material: Glass Filled Polyester or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Matte Tin, or Tin-Lead options
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT parts
- Level 1 Moisture Sensitivity: per J-STD-020C
- Board hole pattern compatible with various pin configurations
- Solder stand-off for wave and IR soldering
- Board pin retention feature available
- Physical dimensions vary depending on pin count and configuration

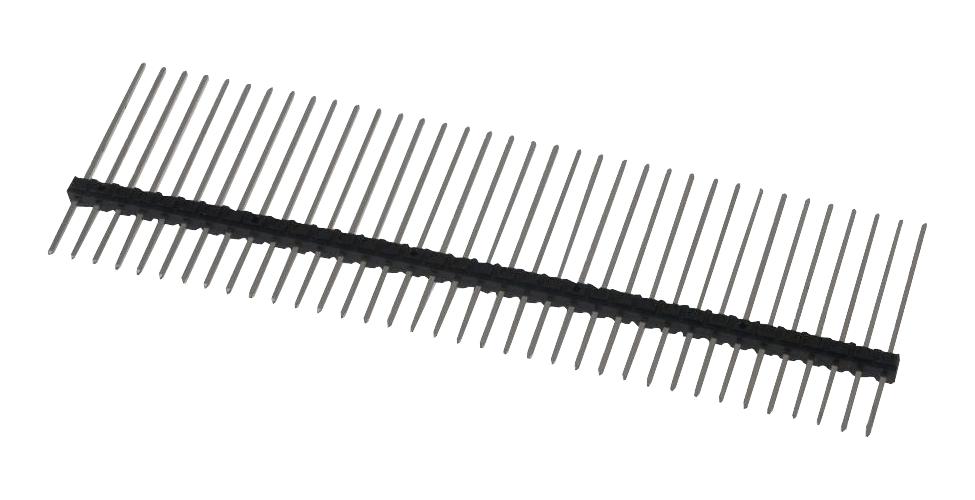

Buy the Buy 3M Pin Strip Header Part Number 9297050136 Online
Purchase the 3M Pin Strip Header 929 Series online today to ensure your electronic projects benefit from high-quality, durable, and reliable interconnect solutions. This header offers excellent temperature tolerance, customizable plating options, and versatile configurations suitable for wave or IR soldering processes. Designed with high-temperature PCT or PBT insulating materials, it provides excellent electrical performance with a current rating of 2.5A and withstands voltages up to 1500V. Ideal for industrial, commercial, and electronic manufacturing applications requiring robust, long-lasting connections.
Get 3M 9297050136 today—built for precision, high-temperature environments, and reliable electrical connections.
Frequently Asked Questions
Where can I buy 3M 9297050136I?
You can click on the BUY or RFQ button to purchase 9297050136I from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9297050136I?
You can download the 9297050136I datasheet or visit the 3M website for support.
Who is the manufacturer of 9297050136I?
3M
