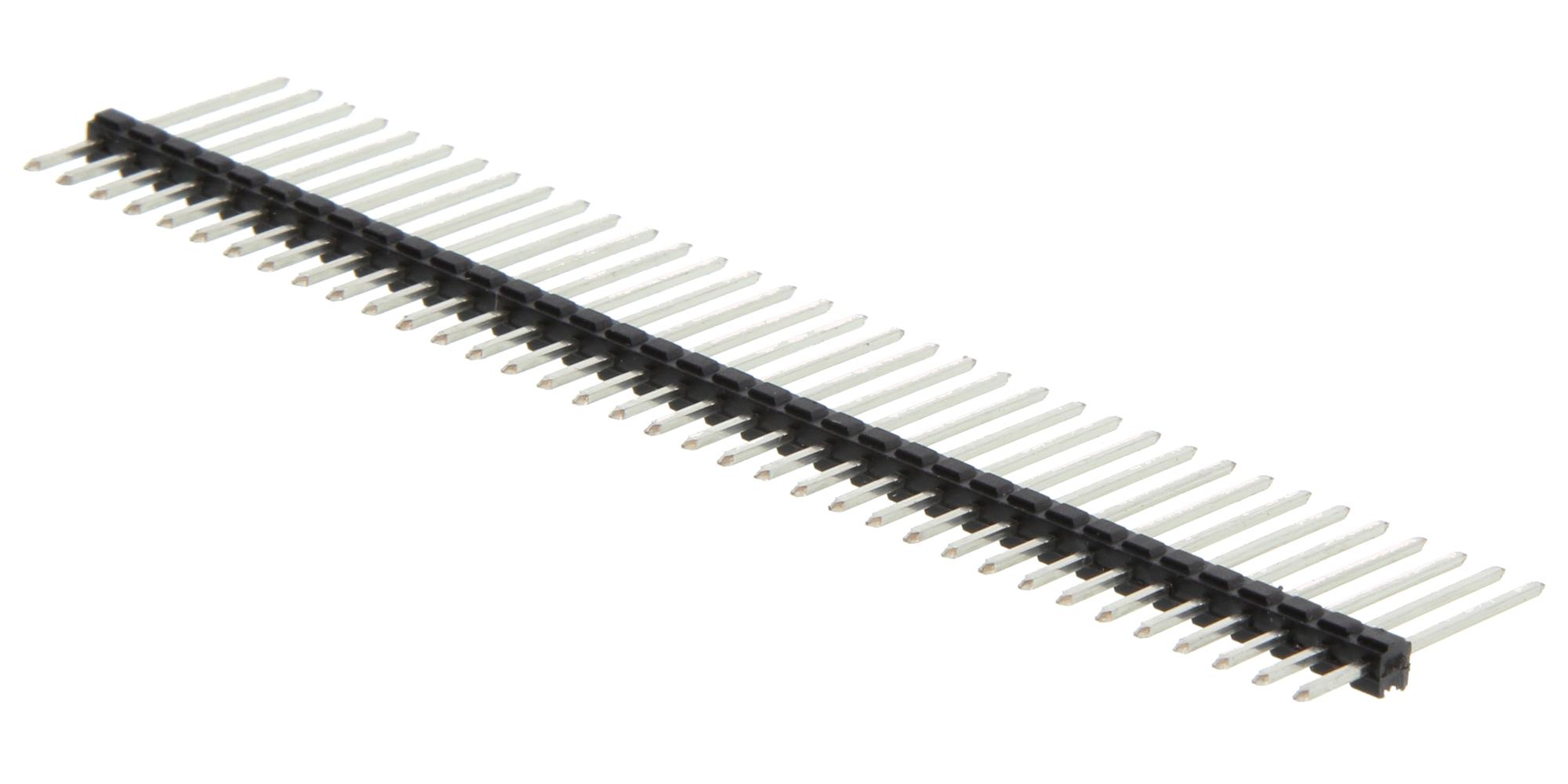

3M 9298340436RK Pin Strip Header
The 3M™ Pin Strip Header Single and Dual Row from the 929 Series offers reliable interconnection with options for gold, matte tin, or tin-lead plating, ideal for high-temperature wave or IR soldering processes. Designed with robust copper alloy contacts, and available in straight or right angle configurations, these headers feature solder tails with solder stand-offs and optional board pin retention for secure connections. Constructed from flame-retardant glass-filled polyester or high-temperature PCT plastic, they meet UL 94V-0 standards and are suitable for demanding electronic applications, providing excellent electrical stability and environmental resilience.
3M 9298340436RK Pin Strip Header Specifications:
- Material: Glass Filled Polyester (PBT) or High Temperature (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Matte Tin, or Tin-Lead options
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (PCT), Max Insulation Temp 191°C
- Moisture Sensitivity Level: Level 1
- UL File No.: E68080
- Physical Dimensions: Insulator thickness 0.100+0.003 inches, pin lengths varying from 0.110 to 1.80 inches based on configuration
- Solder Tails: Suitable for wave or IR soldering with solder stand-off
- Board hole pattern and pin quantities vary per model, accommodating different density requirements
Buy the 3M 929 Series Pin Strip Header – Reliable Connectors for Industrial Applications
Enhance your electronic assemblies with 3M’s high-quality pin strip headers. Crafted for durability and performance, these headers feature multiple plating options, high-temperature resistance, and secure mounting features suitable for demanding industrial and electronic applications. Available in various configurations for single or dual-row connections, they facilitate reliable electrical connections with precise dimensions and solder tails optimized for wave or IR soldering. Ensure your projects benefit from proven quality and efficiency by purchasing these reliable interconnect components online today.
Buy 3M 929 Series Pin Strip Headers now and experience unmatched reliability and performance in electronic assembly and interconnection tasks.
