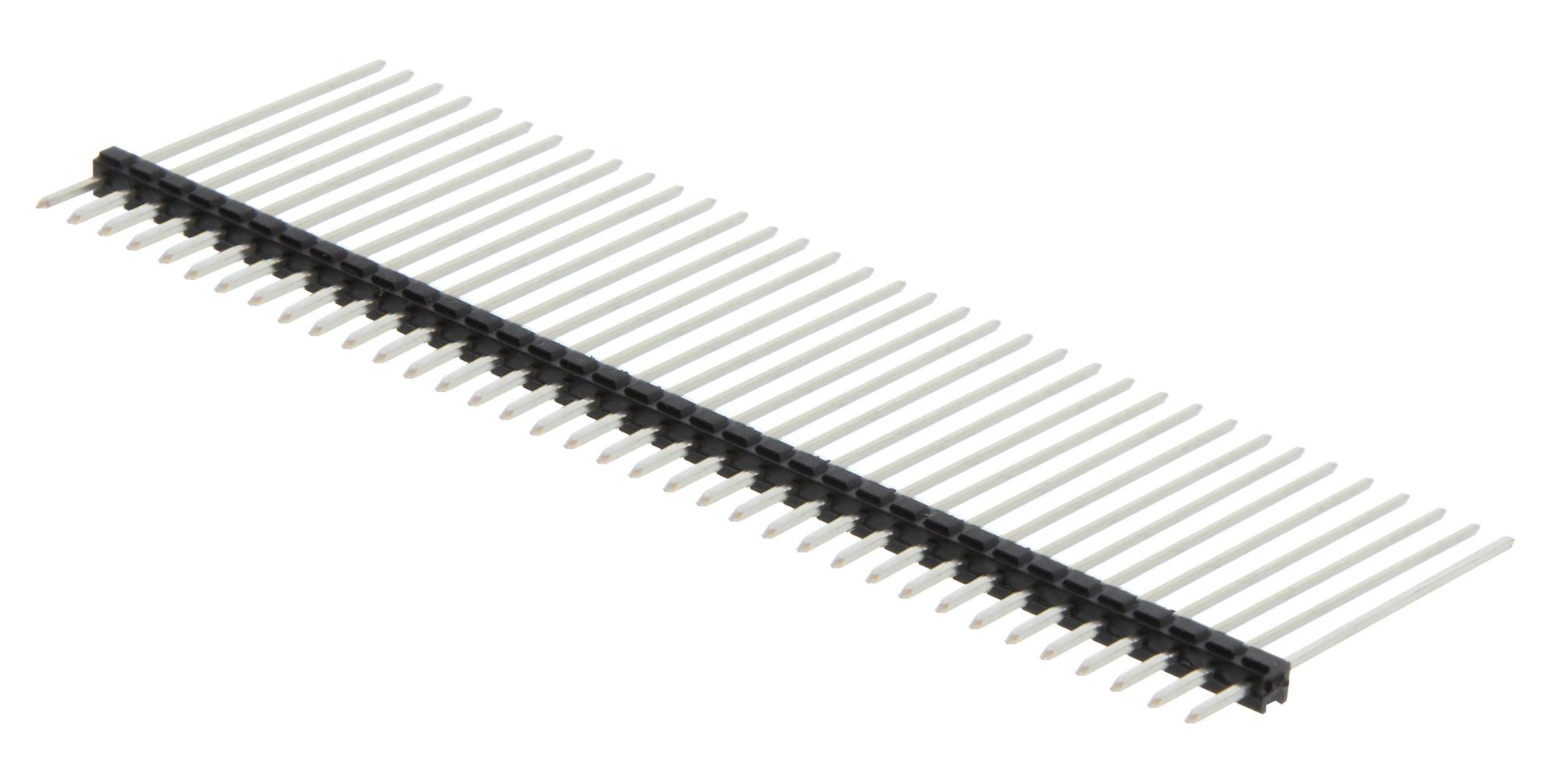

3M 9298340736RK Pin Strip Header
The 3M™ Pin Strip Header is a versatile electronic component featuring single and dual row configurations with straight and right-angle options. It offers a mating length of .100”, with additional lengths of .235” and .318”, suitable for PCB mounting and wire ribbon applications. Made from high-temperature PCT plastic with UL 94V-0 flammability rating, it includes gold, matte tin, or tin-lead plating options. With a current rating of 2.5A and insulation resistance exceeding 5x 10^9Ω at 500V, it supports wave and IR soldering, ensuring reliable electrical connections in industrial and electronic device manufacturing.
3M 9298340736RK Pin Strip Header Specifications:
- Material: Glass Filled Polyester or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, Tin-Lead
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT parts, maximum 191°C for solder wave process
- Moisture Sensitivity Level: Level 1
- Board Mounting Hole Diameter: 0.100" ±0.003"
- Socket Length Variants: .100", .235", .318"
- Mechanical: Compatible with wave and IR soldering, with solder stand-off for wave soldering
- Board Pin Retention: Available as an option, change from '9X9' to '9R9' in ordering
- Certifications: UL Listed, RoHS compliant
Buy the Buy 3M Pin Strip Header Part Number 9298340736RK Online
Buy the 3M Pin Strip Header online today for reliable and versatile electrical interconnect solutions. Designed for PCB applications, it supports wave and IR soldering with high temperature tolerance, making it ideal for industrial electronics and connector assemblies. Choose from various plating options including gold, tin, or tin-lead for enhanced durability. With dual and single row configurations, it offers excellent pin retention and precise mating lengths of .100”, .235”, and .318”. Enjoy fast delivery, secure ordering, and quality assured for all your electronic assembly needs.
Order your 3M Series929 Pin Strip Header today and ensure dependable electrical connections with high-temperature soldering and reliable plating options.
Frequently Asked Questions
Where can I buy 3M 9298340736RK?
You can click on the BUY or RFQ button to purchase 9298340736RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298340736RK?
You can download the 9298340736RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9298340736RK?
3M
