3M 929850010230 Boardmount Socket

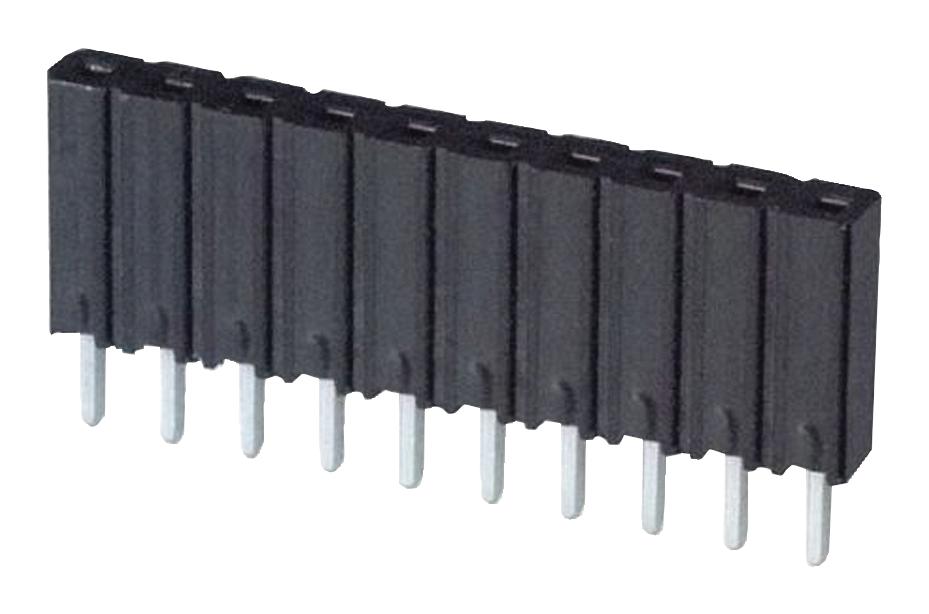

The 3M 929850-01-02-30 is a boardmount socket within the 929 series, designed for reliable connections in electronic assemblies. Featuring a tuning fork contact design and solder standoffs, this socket facilitates efficient production wave soldering. It is available with various contact configurations (1-40 on a single row, 2-80 on two rows) and plating options, including tin-lead, matte tin, and gold. The insulator is made of glass-filled polyester (PCT) with UL 94V-0 flammability rating, ensuring robust performance and safety in a wide range of industrial applications.
3M 929850010230 Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Underplating: 100 μin Nickel
- Wiping Area: See ordering information
- Solder Tails: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: > 5 × 10^9 Ω
- Withstanding Voltage: 1,500 VRMS
- Temperature Rating: -40ºC to +105ºC
- Process Rating: 260ºC (J-STD-020C)
- UL File No.: E68080
- Contact Quantity: 1-40 contacts on single row, 2-80 contacts on two row
Buy the 929850-01-02-30 3M Boardmount Socket | myMectronic
Purchase the 3M 929850-01-02-30 Boardmount Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy 3M 929850010230?
You can click on the BUY or RFQ button to purchase 929850010230 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929850010230?
You can download the 929850010230 datasheet or visit the 3M website for support.
Who is the manufacturer of 929850010230?
3M
