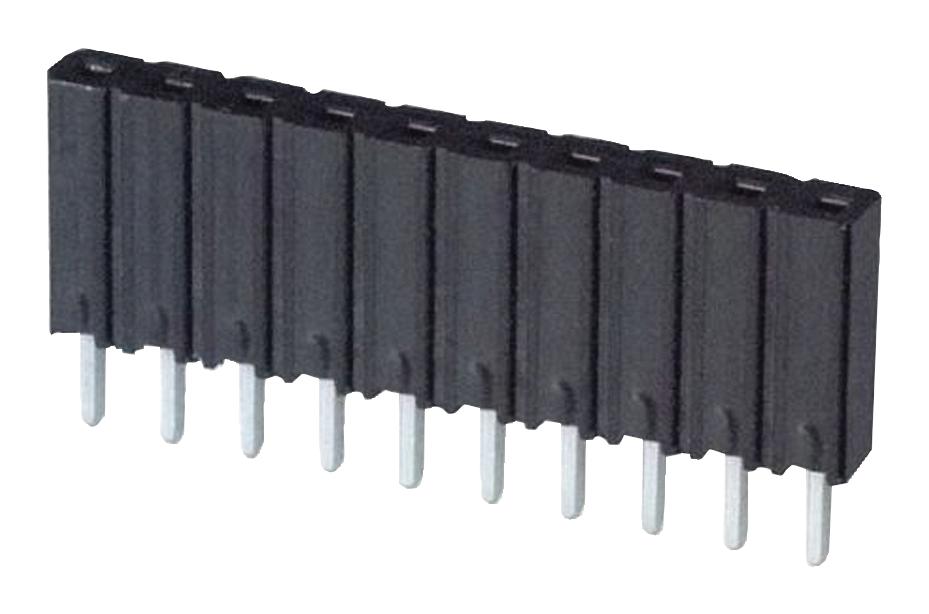

3M 929850010410 Boardmount Socket
The 3M Boardmount Socket from the 929 Series is designed for reliable electronic connections. Featuring .100-inch and .100 x .100-inch straight solder tails, it supports 1-40 contacts on a single row or 2-80 contacts on two rows. Constructed from glass-filled polyester with UL 94V-0 flammability rating and color black, it offers excellent durability. The copper alloy contacts are plated with nickel, and tin-lead or matte tin options are available. This socket withstands temperatures from -40°C to +105°C and provides up to 2 amps per line, with high insulation resistance and 1,500V withstand voltage at sea level.
3M 929850010410 Boardmount Socket Specifications:
- Material: Glass Filled Polyester, UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel, optional Gold, Matte Tin, or Tin-Lead
- Temperature Rating: -40°C to +105°C
- Current Rating: 2 amps per line
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Flammability: UL 94V-0
- Wiping Area: None
- Solder Tails: Straight, supporting wave soldering
- Optional Board Retention: Yes
- Maximum Insulator Temperature: 191°C
- Recommended Mounting Hole Tolerance: +.005 inch
- Dimensions: Size varies with contact count, standard pitch 0.100 inches
- Process Rating: 260°C for soldering, maximum molded insulator temperature 191°C
Buy the Buy 3M Boardmount Socket Part Number 929850010410 Online
Purchase the reliable 3M Boardmount Socket from the 929 Series online today. Designed with high-quality materials and compliant with RoHS standards, this socket supports up to 80 contacts with straight solder tails suitable for wave soldering. Its robust construction from glass-filled polyester and copper alloy contacts ensures long-term durability for various electronic applications. Enjoy quick online ordering, fast shipping, and exceptional customer support to enhance your manufacturing process with this dependable interconnect component.
Get 3M 929850010410 today—built for precise electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy 3M 929850010410?
You can click on the BUY or RFQ button to purchase 929850010410 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929850010410?
You can download the 929850010410 datasheet or visit the 3M website for support.
Who is the manufacturer of 929850010410?
3M
