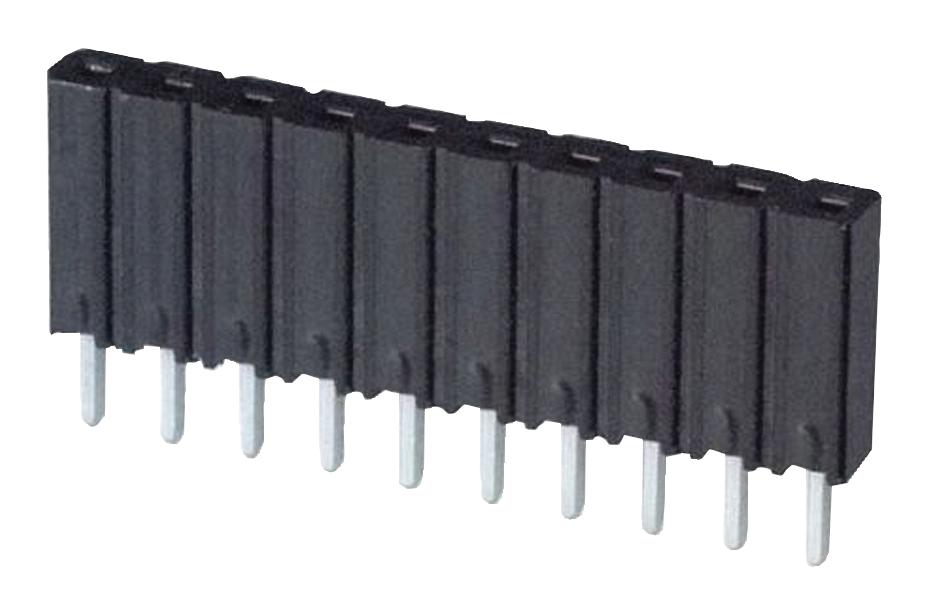

3M 9298500115RA Boardmount Socket
The 3M Boardmount Socket is a high-quality, reliable connector suitable for various electronic applications. Designed with a tuning fork contact structure, it features solder standoffs facilitating wave soldering and optional board retention. Made from glass-filled polyester with UL 94V-0 flammability rating, it provides excellent durability. The contact material is copper alloy with tin-lead or matte tin plating, ensuring dependable electrical performance. Rated for up to 2 amps, it withstands voltages up to 1500 V, operating effectively between -40°C to +105°C and tolerating up to 260°C during soldering, making it ideal for robust industrial use.
3M 9298500115RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin-Lead or Matte Tin
- Insulation Resistance: >5 x 10^9 at 500 V
- Withstanding Voltage: 1500 V at Sea Level
- Current Rating: 2 amps maximum
- Temperature Range: -40°C to +105°C
- Solder Process Temperature: 260°C (max molded insulator temperature 191°C)
- Physical Dimensions: Varies with contact quantity, 1.00" (25.40 mm) typical width
- Compliance: RoHS, UL File No. E68080
Buy the 3M 929 Series U–2013 Reliable Boardmount Socket for Industrial Applications
Purchase the 3M Boardmount Socket online today and ensure reliable connections for your electronic projects. Featuring tuning fork contacts, solder standoffs for efficient wave soldering, and optional board retention, this durable connector is rated for 2 amps and up to 1500 V. Operating from -40°C to +105°C, it withstands high temperatures during manufacturing processes. Made from UL 94V-0 rated polyester with copper alloy contacts, it guarantees safety, durability, and efficiency for industrial, commercial, and professional electronic applications. Secure your supply now!
Order your 3M Series 929 Boardmount Socket today and give your projects the dependable quality they deserve, perfect for robust industrial electronic assemblies.
Frequently Asked Questions
Where can I buy 3M 9298500115RA?
You can click on the BUY or RFQ button to purchase 9298500115RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500115RA?
You can download the 9298500115RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500115RA?
3M
