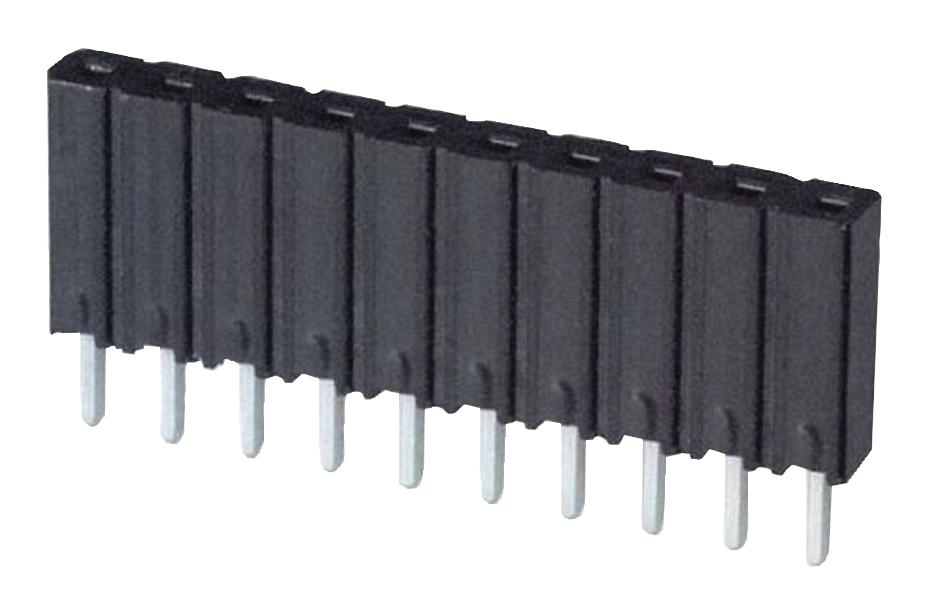

3M 9298500130RA Boardmount Socket
The 3M Boardmount Socket series features .100 inch and .100 x .100 inch straight solder tails, accommodating 1-40 contacts on a single row or 2-80 contacts on two rows. Designed with a tuning fork contact structure, these sockets facilitate secure connections and ease of assembly. They include optional board retention features and are constructed from UL 94V-0 glass-filled polyester insulators in black. Suitable for electronic interconnect applications, they support a maximum current of 2 amps and withstand voltages up to 1500V at sea level, with temperature ratings from -40°C to +105°C, ideal for rugged environments.
3M 9298500130RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel 100 µ
- Solder Tails: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1,500 V at sea level
- Temperature Rating: -40°C to +105°C
- Maximum Molded Insulator Temperature: 191°C
- Process Rating: 260°C (J-STD-020C)
Buy the Buy 3M Boardmount Socket Part Number 9298500130RA Online
Secure your electronic assemblies with the 3M Boardmount Socket, featuring durable UL 94V-0 polyester insulators, tuning fork contacts, and optional retention. Designed for high reliability, it supports up to 2A current, withstands temperatures from -40°C to +105°C, and offers easy wave soldering with solder standoffs. Compatible with standard pin headers and available in various plating options, this socket ensures precise connections for demanding applications. Purchase online for fast delivery and proven 3M quality assurance.
Buy 3M 9298500130RA Boardmount Socket now and experience reliable high-density electronic connections with secure solder tails and optional retention features.
Frequently Asked Questions
Where can I buy 3M 9298500130RA?
You can click on the BUY or RFQ button to purchase 9298500130RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500130RA?
You can download the 9298500130RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500130RA?
3M
