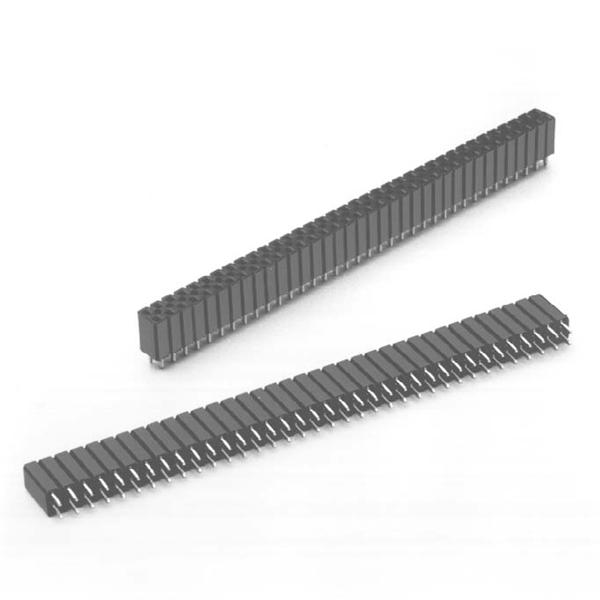

3M 929850013210 Boardmount Socket
This 3M boardmount socket features a 0.100-inch straight connector with solder tails, designed for reliable electrical connections. It accommodates 1-40 contacts in a single row or 2-80 contacts in a double row, with a tuning fork contact design for secure mating. The solder standoffs facilitate wave soldering, while an optional board retention feature enhances stability. Made from glass-filled polyester or high-temperature nylon, it’s rated for -40°C to +105°C and withstands up to 1500 V. Certified for UL listing, it’s ideal for electronic interconnections requiring durability and precise assembly.
3M 929850013210 Boardmount Socket Specifications:
- Material: Glass Filled Polyester or High Temperature Nylon
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Tin Lead or Matte Tin (see ordering info), Gold options available with specific thicknesses
- Insulation Resistance: >5x 10^9Ω at 500V
- Current Rating: 2 amps maximum
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1,500 V
- Temperature Rating: -40°C to +105°C
- Maximum Molded Insulator Temperature: 191°C
- Process Temperature: 260°C (per J-STD-020C)
- Solder Tails: 0.100 inch (2.54 mm), designed for wave soldering
- Physical Dimensions: Ranges from 0.20 inches (5.08 mm) to 4.00 inches (101.60 mm) depending on contacts
- Board Retention: Optional feature included in specific models
- Certifications: UL listed, RoHS compliant
- Part Number: 929850013210
Buy the Buy 3M Boardmount Socket Part Number 929850013210 Online
Purchase the 3M Boardmount Socket with 0.100-inch straight connector, designed for high-temperature industrial environments. Featuring solder tails and optional retention, it ensures reliable connections in electronic assembly. Made from durable materials with UL certification, this socket supports up to 2 amps and withstands voltages up to 1,500 V. Its versatile design accommodates single and double row contacts, perfect for projects requiring secure and efficient interconnections. Order online now for fast delivery and expert support.
Get 3M 929850013210 today—built for precise electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy 3M 929850013210?
You can click on the BUY or RFQ button to purchase 929850013210 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929850013210?
You can download the 929850013210 datasheet or visit the 3M website for support.
Who is the manufacturer of 929850013210?
3M
