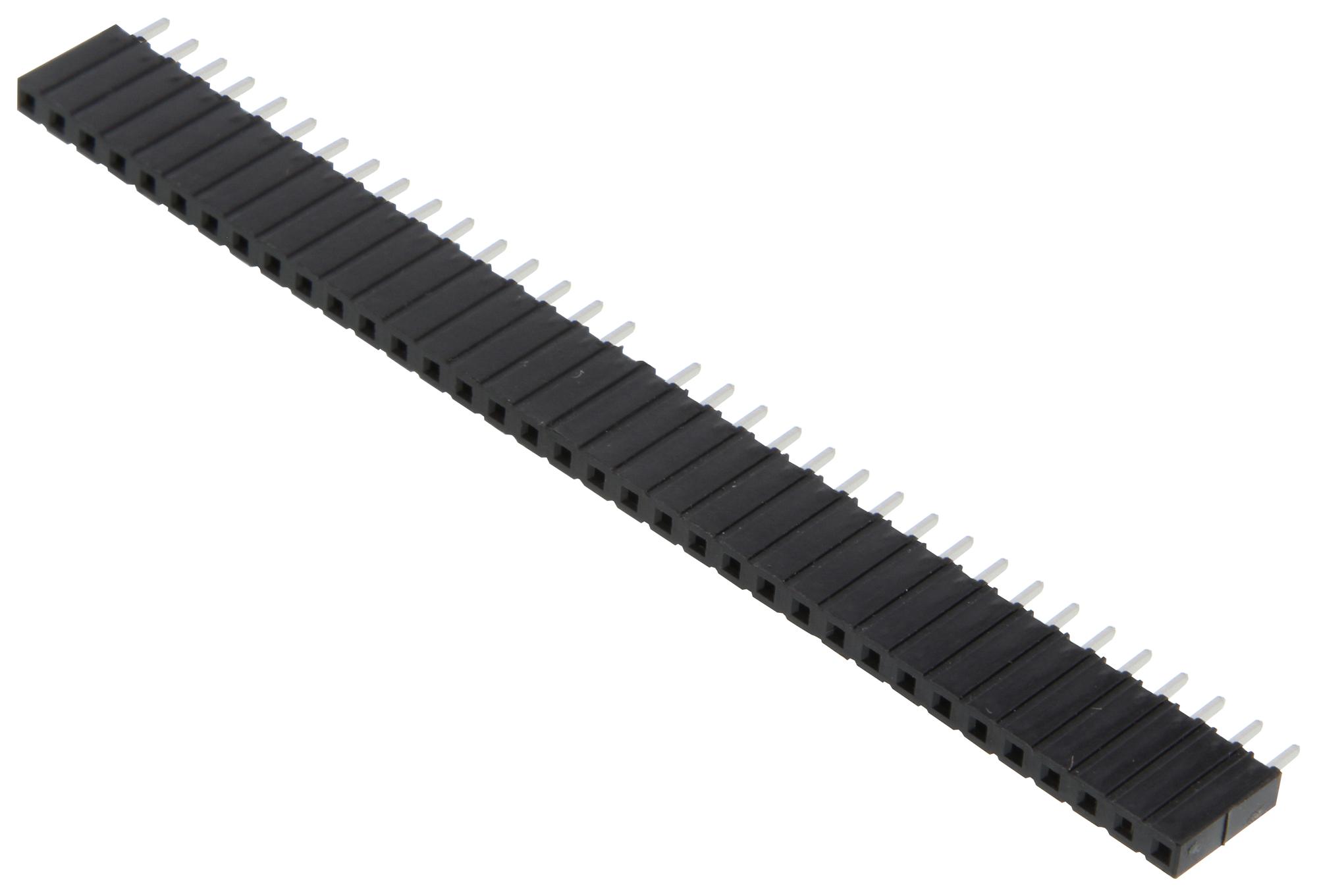

3M 9298500135RA Boardmount Socket
The 3M Boardmount Socket 929 Series offers reliable electrical connections with a robust design suitable for various electronic applications. It features a glass-filled polyester insulator rated UL 94V-0 in black, with copper alloy contacts plated in tin-lead or matte tin for corrosion resistance. Suitable for currents up to 2 amps per line at maximum ambient temperatures of 65°C, it supports assembly via solder tails and optional board retention features. With operating temperatures from -40°C to +105°C and compliance with RoHS standards, this socket ensures durability and high-performance connection integrity for electronic assemblies.
3M 9298500135RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester, UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin-lead or Matte Tin (See ordering info)
- Current Rating: 2 amps maximum per line at 65°C maximum ambient
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1500 V at Sea Level
- Operating Temperature Range: -40°C to +105°C
- Process Temperature: 260°C (J-STD-020C), Max molded insulator temperature 191°C
- Flammability: UL 94V-0
- Dimensions: 0.100 inch (2.54 mm) pitch, various contact lengths from 0.20 inch to 4.00 inch
- Mounting: Through-hole, with optional retention feature
- Marking: Not specified
- Certifications: RoHS compliant
Buy the 3M Series 929 Boardmount Socket: 9298500135RA
Experience high-quality electrical connectivity with the 3M Series 929 Boardmount Socket, designed for robust performance in various electronic assemblies. The durable glass-filled polyester insulator, rated UL 94V-0, ensures safe operation across temperatures from -40°C to +105°C. Copper alloy contacts are plated in tin-lead or matte tin, providing excellent corrosion resistance and reliable solder connections. Supports current up to 2 amps per line, with optional board retention for secure mounting. Experience easy installation, RoHS compliance, and long-lasting performance—order your 3M socket online today and ensure reliable electrical connections for your projects.
Get 3M Series 929 Boardmount Socket today—built for precision, durability, and reliable electronic connections.
Frequently Asked Questions
Where can I buy 3M 9298500135RA?
You can click on the BUY or RFQ button to purchase 9298500135RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500135RA?
You can download the 9298500135RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500135RA?
3M
