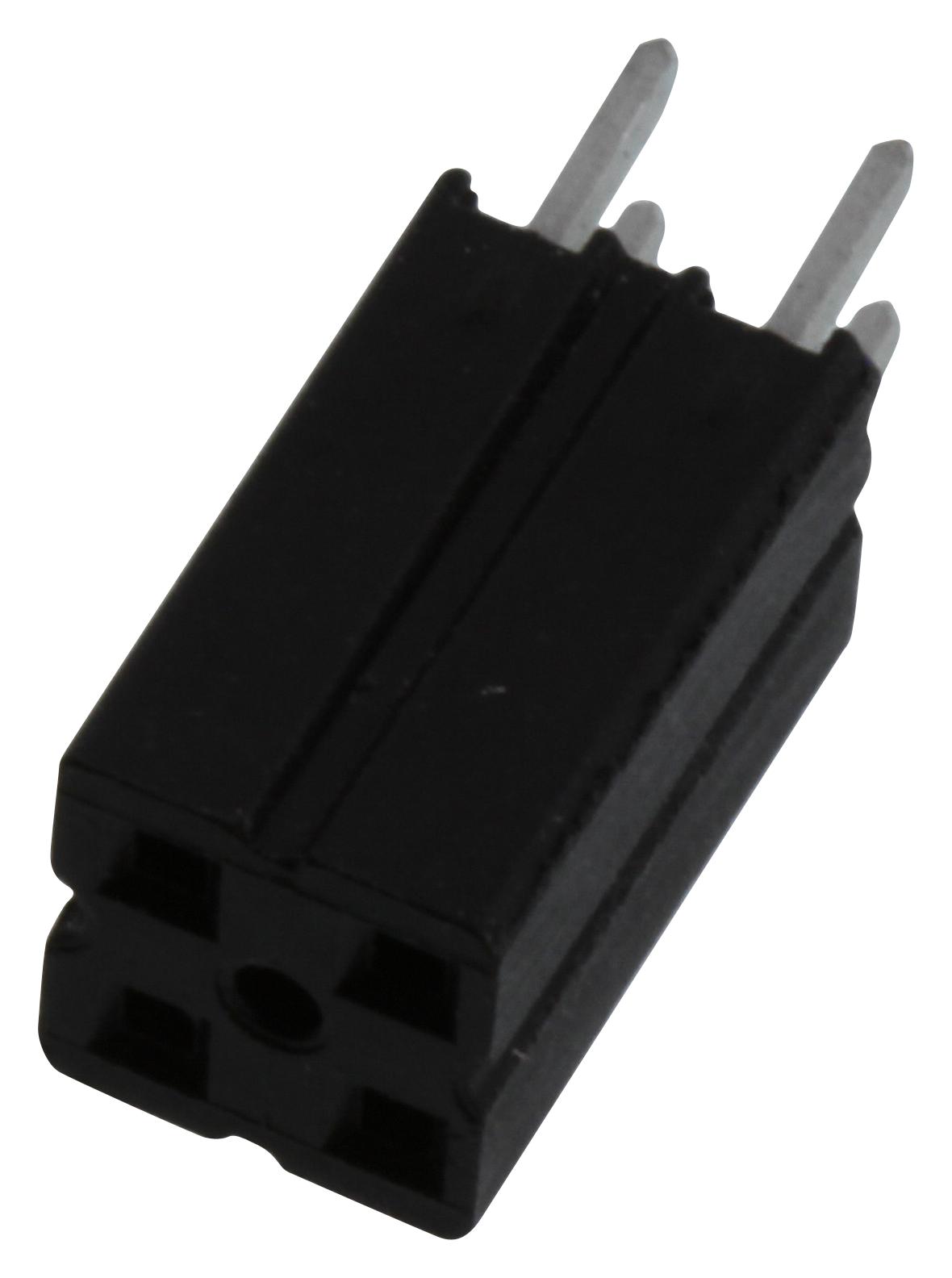

3M 929852010210 Electronic Socket
The 3M Boardmount Socket from the 929 Series features .100" and .100" x .100" straight solder tails, designed for reliable electrical connections in electronic assemblies. Constructed with a glass-filled polyester insulator with UL 94V-0 flammability rating, it offers high-temperature resistance up to 105°C and a current rating of 2 amps per line. It includes optional board retention features, solder standoffs for wave soldering, and is compatible with standard header pins. The socket is plated with tin-lead or matte tin for enhanced corrosion resistance, suitable for RoHS-compliant applications and reliable performance in industrial electronics.
3M 929852010210 Electronic Socket Specifications:
- Material: Glass Filled Polyester UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin-Lead or Matte Tin
- Current Rating: 2 amps per line
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (max solder process temperature), maximum molded insulator temperature 191°C
- Dimensions: .100" x .100" straight solder tails, hole spacing 2.54 mm (0.1 inch), various contact and pitch options
Buy the 3M Series 929 Electronic Socket: 929852010210
Order the 3M 929 Series Electronic Socket online today for effortless integration into your electronic projects. Designed with high-quality materials and precise specifications, this socket ensures secure and reliable electrical connections. Its reliable solder tails and optional retention features make it suitable for a broad range of applications, from industrial electronics to complex circuit boards. With RoHS compliance and a high-temperature rating, this socket guarantees safety, durability, and excellent performance. Purchase online now for fast delivery and seamless installation.
Buy 3M 929 Series Electronic Socket now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy 3M 929852010210?
You can click on the BUY or RFQ button to purchase 929852010210 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929852010210?
You can download the 929852010210 datasheet or visit the 3M website for support.
Who is the manufacturer of 929852010210?
3M
