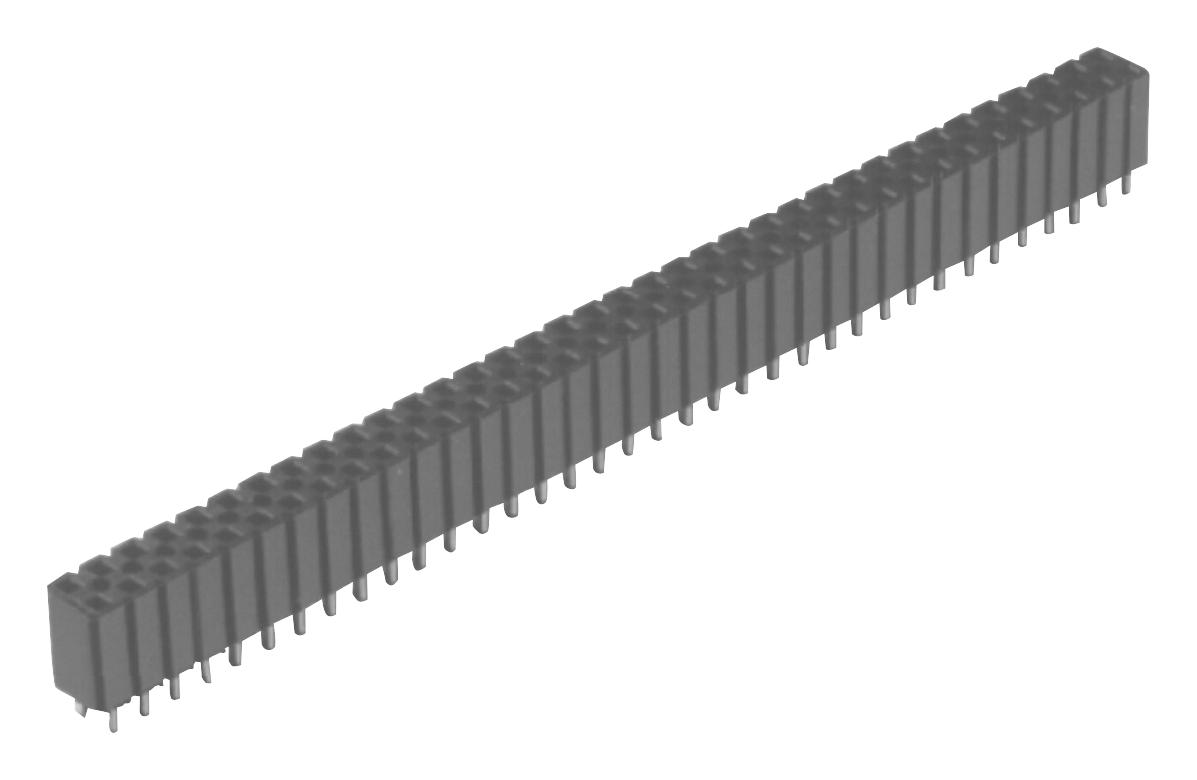

3M 9298520105RA Boardmount Socket
The 3M Boardmount Socket is a reliable electronic component designed for board-to-board connections in industrial and electronics applications. Featuring a glass-filled polyester insulator with UL 94V-0 flammability rating, it offers a current rating of up to 2 amps per line at maximum ambient temperatures of 65°C. The socket's copper alloy contacts are plated with nickel and tin-lead or matte tin for excellent conductivity and corrosion resistance. It includes solder tails for wave soldering, optional board retention, and detailed specifications ensuring durability and compliance with RoHS standards, making it a versatile choice for dense interconnect arrangements.
3M 9298520105RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT), UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel 100 µ
- tin-lead or matte tin options
- Current Rating: 2 amps maximum per line at 65°C ambient
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1,500 V at sea level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C), maximum molded insulator temperature 191°C
- Physical Dimensions: 0.100
- 0.1
- x .100
- 0.1
- straight with solder tails, various circuit configurations available
- Flammability: UL 94V-0
- Certifications: RoHS compliant
Buy the 3M 9298520105RA – Reliable Boardmount Sockets for Industrial Applications
Enhance your electronic projects with the high-quality 3M Boardmount Socket, designed for durable and reliable connections. Featuring solder tails, optional board retention, and corrosion-resistant chemical plating, this component ensures stable performance in demanding industrial environments. Its UL 94V-0 flammability-rated insulator and wide temperature tolerance from -40°C to +105°C make it suitable for various applications. Easy to install with wave soldering compatibility, it provides a secure and efficient interconnect solution tailored for high-density, space-saving electronic assemblies. Buy online today for quality you can trust and improved project reliability.
Order your 3M Series 929 Boardmount Socket today and give your electronic assemblies the dependable connection quality they deserve.
Frequently Asked Questions
Where can I buy 3M 9298520105RA?
You can click on the BUY or RFQ button to purchase 9298520105RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298520105RA?
You can download the 9298520105RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298520105RA?
3M
