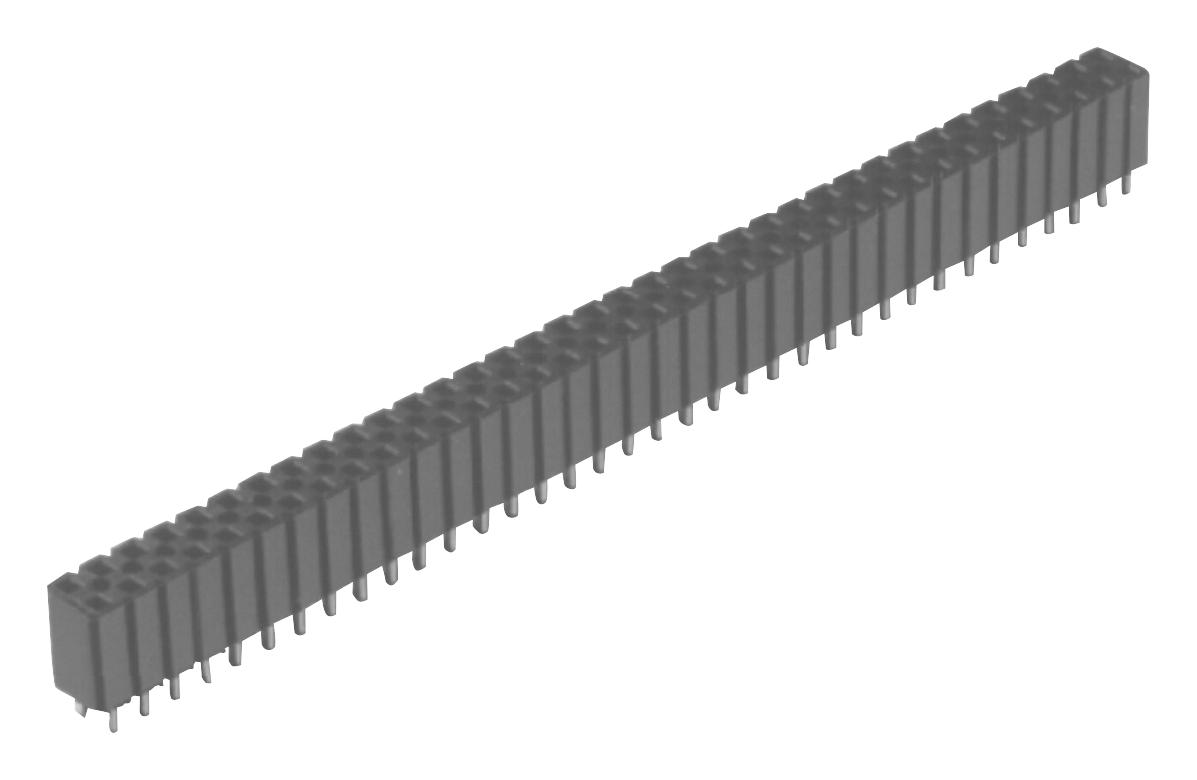

3M 9298520108RA Boardmount Socket
The 3M Boardmount Socket, part of the 929 Series, features a tuning fork contact design and solder standoffs for efficient wave soldering. Made from UL 94V-0 glass-filled polyester in black, it accommodates 1 to 40 contacts on a single row or 2 to 80 contacts on two rows. It includes optional board retention and is rated for 2 amps per line at maximum 65°C ambient temperature. Its insulation resistance exceeds 5 x 10⁹Ω at 500 V and withstands up to 1,500 V at sea level, with a temperature rating from -40°C to +105°C and a maximum process temperature of 260°C.
3M 9298520108RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin (see ordering info)
- Insulation Resistance: >5 x 10⁹Ω at 500 V
- Withstanding Voltage: 1,500 V at sea level
- Current Rating: 2 amps maximum per line at 65°C
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C maximum (PBT insulator), 191°C maximum molded insulator temperature
- Dimensions: Includes 0.100" and 0.100" x 0.100" straight solder tails, contact quantity varies from 1 to 80 depending on configuration
- Recommended Mounting Hole Pattern Tolerance: +/- 0.005"
- Certification: UL File No. E68080
- Board retention feature available (optional)
Buy the Buy 3M 929 Series Boardmount Socket Part Number 9298520108RA Online
Purchase the 3M 929 Series Boardmount Socket online today to ensure high-quality, durable connections for your electronic assembly needs. Designed with tuning fork contacts and solder standoffs, this socket is ideal for wave soldering processes. It features a robust UL 94V-0 plastic insulator in black, copper alloy contacts with tin or matte tin plating, and supports up to 2 amps per line at 65°C ambient temperature. Its wide contact options accommodate from 1 to 80 contacts, with optional board retention for added security. Order now for reliable, long-lasting performance.
Get 3M 929 Series Boardmount Socket today—built for reliable electronic connections with high current capacity and wave soldering compatibility.
Frequently Asked Questions
Where can I buy 3M 9298520108RA?
You can click on the BUY or RFQ button to purchase 9298520108RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298520108RA?
You can download the 9298520108RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298520108RA?
3M
