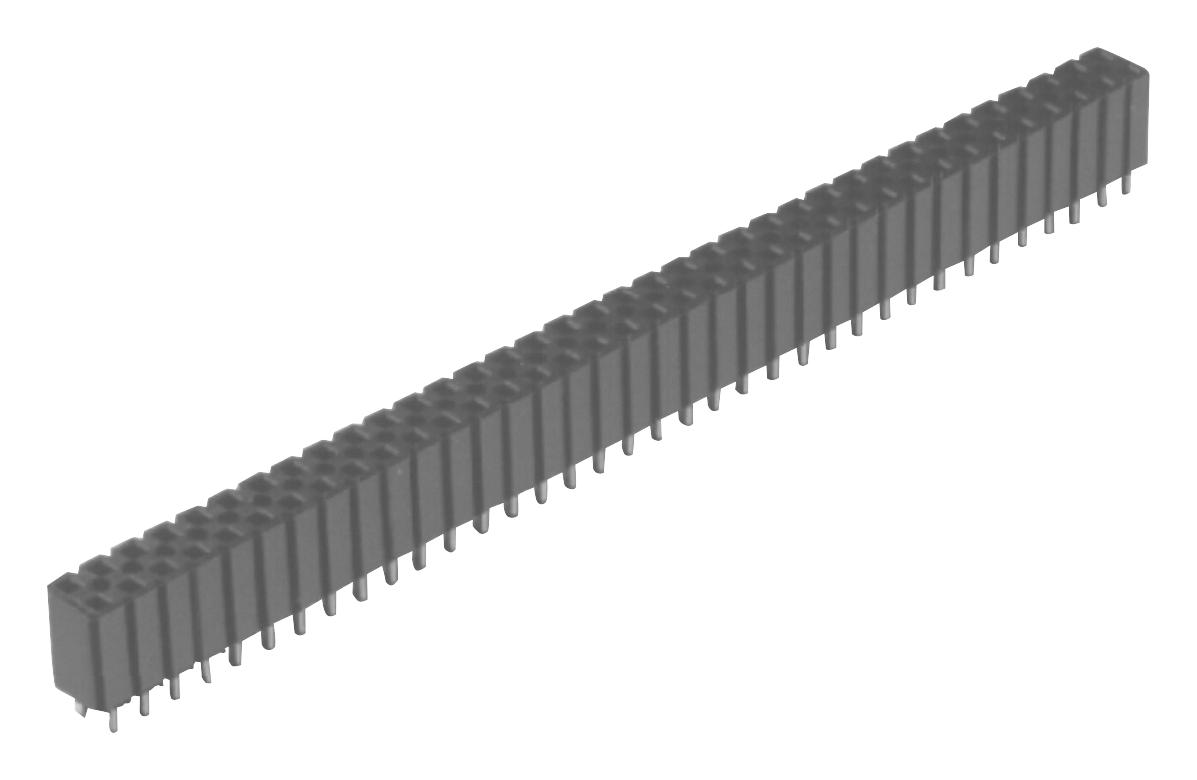

3M 9298520110RA Boardmount Socket
The 3M Boardmount Socket from the 929 Series offers a reliable electrical connection with a tuning fork contact design, suitable for surface mounting on circuit boards. Made with high-quality copper alloy contacts plated with nickel and matte tin, it features solder tails for wave soldering. The socket's insulator is crafted from UL 94V-0 glass-filled polyester, capable of withstanding temperatures from -40°C to +105°C. It supports a maximum current of 2 amps per line, with an insulation resistance greater than 5 x 10^9 ohms at 500 V, ensuring durable and safe electrical performance in various electronic assemblies.
3M 9298520110RA Boardmount Socket Specifications:
- Insulator Material: Glass Filled Polyester (UL 94V-0)
- Contact Material: Copper Alloy
- Contact Plating: Nickel, optionally Matte Tin or Tin Lead
- Temperature Rating: -40°C to +105°C
- Current Rating: 2 amps maximum per line
- Dielectric Withstanding Voltage: 1500 V AC at Sea Level
- Insulation Resistance: >5 x 10^9 ohms at 500 V
- Flammability: UL 94V-0
- Color: Black
- Solder Tails: Facilitates wave soldering, with optional ceramic board retention feature
- Dimensions: varies by contact count, with reference for pin spacing of .100" x .100"
Buy the Buy 3M Boardmount Socket Part Number 9298520110RA Online
Purchase the 3M Boardmount Socket from the 929 Series online today. This high-performance connector features tuning fork contacts, solder tails, and a durable insulator for secure connections. Designed for surface mounting, it withstands temperatures from -40°C to +105°C and supports up to 2 amps per line, ensuring dependable operation. Whether assembling electronic devices or performing repair work, buy online now for quick, reliable delivery and expand your electronic component inventory with confidence.
Buy 3M 9298520110RA boardmount socket now and experience reliable electrical connections with high-quality tuning fork contacts and wave soldering compatibility.
Frequently Asked Questions
Where can I buy 3M 9298520110RA?
You can click on the BUY or RFQ button to purchase 9298520110RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298520110RA?
You can download the 9298520110RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298520110RA?
3M
