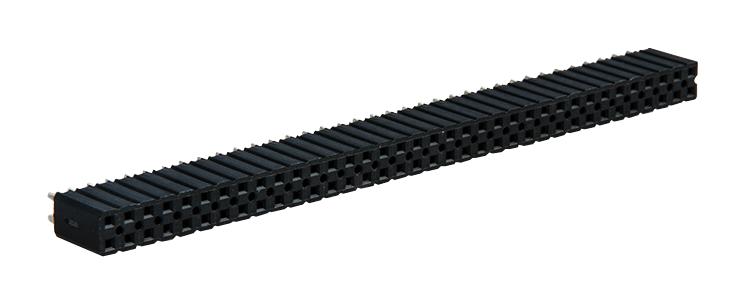

3M 9298520110RB Pin Strip Header
The 3M™ Pin Strip Header Single and Dual Row from the 929 Series is a high-quality electrical connector designed for versatile applications. Crafted from high-temperature PCT or PBT plastic, it features gold, matte tin, or tin-lead plated copper alloy contacts, ensuring excellent conductivity and corrosion resistance. Suitable for wave or IR soldering, it offers a solder stand-off, board pin retention, and various mating lengths (.100”, .235”, .318”). Its robust construction supports an insulation resistance of >5×10^9Ω at 500V and current rating of 2.5A, with a temperature range from -40°C to +105°C, making it ideal for industrial and electronic applications.
3M 9298520110RB Pin Strip Header Specifications:
- Material: Glass Filled Polyester (PBT) or High Temperature (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, Tin-Lead
- Contact Resistance: Not specified
- Current Rating: 2.5A
- Insulation Resistance: >5× 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT parts, maximum insulator temperature 191°C
- Moisture Sensitivity Level: Level 1
- Physical Dimensions: Mating length options 0.100”, 0.235”, 0.318”; Straight & Right Angle variants
- Board Hole Pattern: Compatible with specified hole arrays
- Board Pin Retention: Option for retention feature
- Regulatory Compliance: RoHS compliant, includes applicable EU, China standards
- Environmental Certifications: UL Listed, CSA Certified
Buy the 3M 929 Series U+2013 Reliable Pin Strip Headers for Industrial Applications
Purchase the 3M Pin Strip Header from the 929 Series online today to enhance your electronic assembly projects. It features high-temperature plastic, versatile mating lengths, and strong copper contacts with gold or tin plating options. Ideal for wave and IR soldering processes, it provides excellent electrical performance, reliable board pin retention, and complies with RoHS standards. Whether you need single or dual row configurations, buy online now to ensure your circuit connections are secure and meet industry standards with ease.
Buy 3M 929 Series pin strip header now and experience unmatched reliability, high-temperature performance, and flexible interconnect solutions.
Frequently Asked Questions
Where can I buy 3M 9298520110RB?
You can click on the BUY or RFQ button to purchase 9298520110RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298520110RB?
You can download the 9298520110RB datasheet or visit the 3M website for support.
Who is the manufacturer of 9298520110RB?
3M
