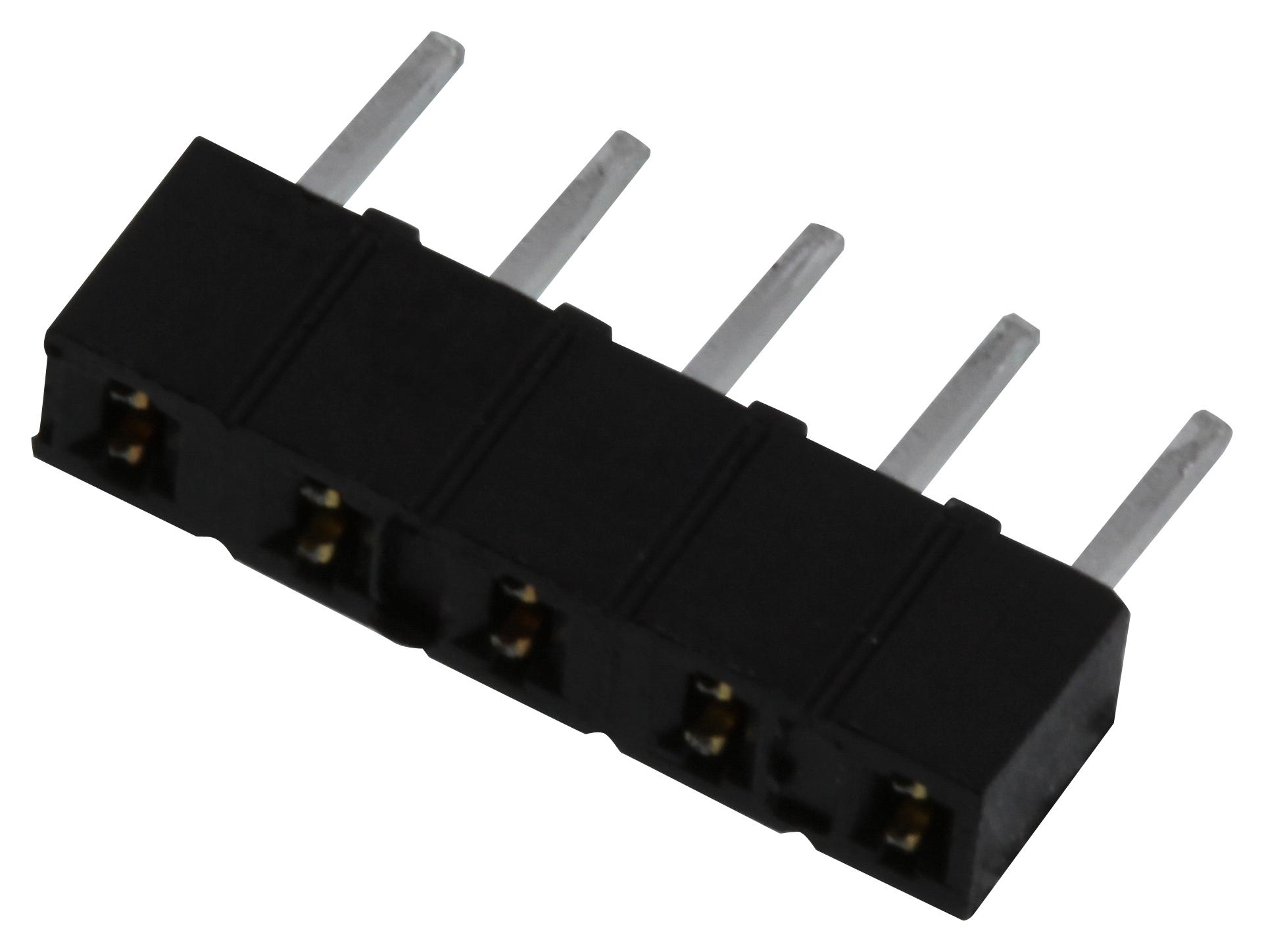

3M 9298700105RA Boardmount Socket
The 3M Boardmount Socket from the 929 Series is a reliable and versatile connector designed for electronic applications requiring secure and robust connections. Crafted with a glass-filled polyester insulator and copper alloy contacts, it features tin-plated or matte tin options for enhanced durability. The socket supports a current rating of 2 amps per line, with high insulation resistance over 5×10^10 at 500 V. Rated for temperatures from -40°C to +105°C, it offers options with or without a board retention feature for flexible assembly, suitable for wave soldering processes.
3M 9298700105RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester (UL 94V-0)
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin (see options)
- Current Rating: 2 amps maximum per line
- Insulation Resistance: >5×10^10 ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (J-STD-020C), maximum insulator temp 191°C
- Color: Black
- Flammability: UL 94V-0
- Dimensions: varies from 0.20” to 4.00” depending on contact quantity
- Mounting: With optional board retention feature
- Physical: Designed for through-hole soldering, with solder standoffs for wave soldering
- Certifications: UL listed (File No. E68080)
Buy the 3M 929 Series U+2013 Reliable Boardmount Socket for Electronic Applications
Enhance your electronic assembly process with the reliable 3M 929 Series Boardmount Socket, featuring solder tails, high current capacity, and temperature resilience. Its versatile design includes options with or without board retention features, and it supports wave soldering, making it perfect for manufacturing and prototyping. Crafted from high-quality materials with tin or matte tin plating, this socket guarantees long-term durability and electrical performance. Purchase online today for fast delivery and ensure your projects have dependable, industry-standard interconnects.
Order your 3M Series929 Boardmount Socket today and ensure robust, reliable connections for your electronic projects with durable, industry-grade components.
Frequently Asked Questions
Where can I buy 3M 9298700105RA?
You can click on the BUY or RFQ button to purchase 9298700105RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700105RA?
You can download the 9298700105RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700105RA?
3M
