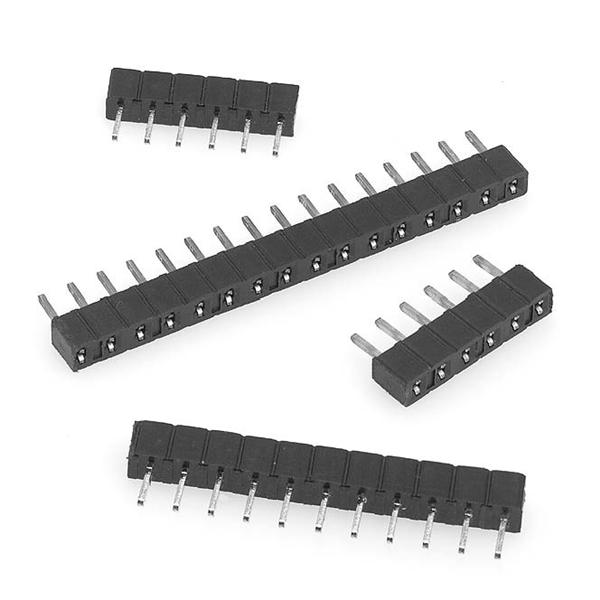

3M 929870010710 Boardmount Connector
This high-quality, low-profile straight connector features solder tails for secure, reliable electrical connections. Designed for easy wave soldering, it allows board stacking as close as 0.150 inches. Constructed with a glass-filled polyester or high-temperature nylon insulation, it is UL 94V-0 rated and highly resistant to heat and flammability. The contact material is copper alloy with various plating options including gold, tin lead, or matte tin to ensure excellent conductivity and corrosion resistance. Suitable for 1A current rating, it withstands high voltages up to 1000 Vrms and operates effectively in temperature ranges from -40°C to 105°C, making it ideal for compact, high-performance electronic projects and manufacturing applications.
3M 929870010710 Boardmount Connector Specifications:
- Insulation Material: Glass Filled Polyester or High Temperature Nylon
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Tin Lead, Matte Tin
- Solder Tails: Facilitates wave soldering
- Current Rating: 1A
- Insulation Resistance: > 1 x 10^6Ω at 500 VDC
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -40°C to 105°C
- Maximum Molded Insulator Temperature: 191°C
- Process Temperature: 260°C (High Temp Nylon only)
Buy the Buy 3M Boardmount Socket Part Number 929870010710 Online
Enhance your electronic projects with the reliable 3M Boardmount Connector, featuring low-profile straight design and solder tails for easy assembly. Ideal for compact device construction, it offers excellent conductivity, heat resistance, and robust connection quality. Perfect for surface-mount applications, the connector withstands high voltages and temperatures, ensuring durability and safety in manufacturing. With multiple plating options and UL safety ratings, this connector is a versatile choice for professional electronics. Order online now to ensure fast delivery and trusted 3M quality standards for your next project.
Order your 3M Series929 Boardmount Socket 929870010710 today and secure dependable, high-performance connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy 3M 929870010710?
You can click on the BUY or RFQ button to purchase 929870010710 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929870010710?
You can download the 929870010710 datasheet or visit the 3M website for support.
Who is the manufacturer of 929870010710?
3M
