3M 9298700120RA Pin Strip Header
This product is a versatile 3M™ Pin Strip Header designed for reliable electrical connections in electronic assemblies. It features single and dual row configurations with options for straight or right-angle mounting, solder tails, and flexible mating lengths of .100”, .235”, and .318”. Constructed with high-temperature PCT or PBT insulators, it complies with UL 94V-0 standards and includes various plating options such as gold, matte tin, or tin-lead. Suitable for wave or IR soldering processes, it offers excellent pin retention, high current capacity of 2.5A, and environmental resilience from -40°C to +105°C.
3M 9298700120RA Pin Strip Header Specifications:
- Material: Glass Filled Polyester or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, Tin-Lead
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT, maximum insulator temperature 191°C
- Moisture Sensitivity Level: Level 1
- Dimensions: Mating Lengths of .100”, .235”, .318”, various pin counts, and angles as per configuration.
- Board pin retention feature and solder stand-off for wave soldering are available.

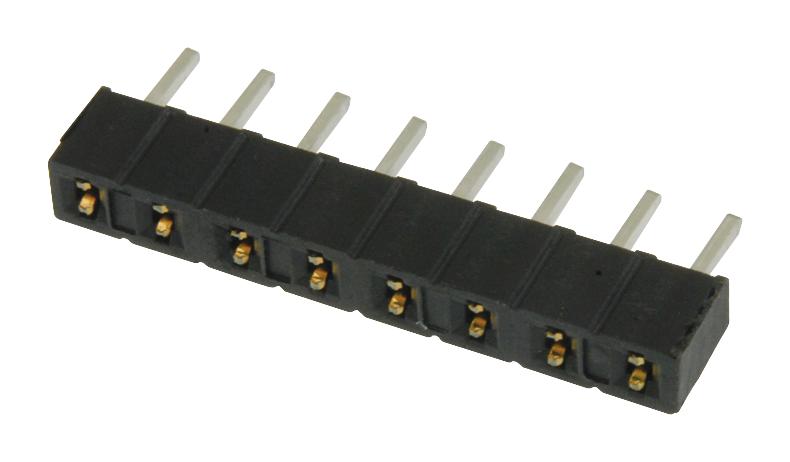

Buy the Buy 3M Pin Strip Header Part Number 9298700120RA Online
Order the 3M pin strip header with single and dual row configurations online today to ensure dependable connections for your electronic assemblies. Featuring high-temperature insulators and multiple plating options, this component supports wave and IR soldering processes, making it suitable for diverse manufacturing environments. Designed with excellent pin retention, it accommodates various mounting angles and mating lengths of .100”, .235”, and .318”. Suitable for applications needing high current capacity and environmental resistance, this product guarantees quality, safety, and ease of installation in your electronic systems.
Buy 3M 9298700120RA pin strip header now and experience unmatched reliability and high-performance electrical connections in your electronic projects.
Frequently Asked Questions
Where can I buy 3M 9298700120RA?
You can click on the BUY or RFQ button to purchase 9298700120RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700120RA?
You can download the 9298700120RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700120RA?
3M
