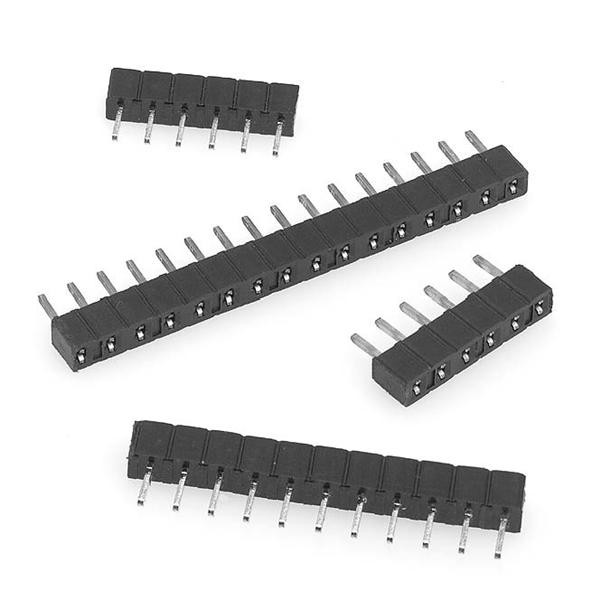

3M 929870013610 Electrical Connector
This is a low-profile, straight electrical connector with solder tails, designed for secure and reliable soldering onto circuit boards. The 929 Series offers a compact design suitable for space-constrained electronic assemblies. Constructed with a glass-filled polyester or high-temperature nylon insulator, it features a copper alloy contact material with gold, tin lead, or matte tin plating options. It supports currents up to 1A, with insulation resistance over 10^9Ω at 500VDC, and withstands voltage up to 1000V RMS. Its temperature range is -40°C to 105°C, suitable for various electronic environments, ensuring durability and regulatory compliance.
3M 929870013610 Electrical Connector Specifications:
- Insulation Material: Glass Filled Polyester (PBT) or High Temperature Nylon
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Tin Lead or Matte Tin (See ordering info)
- Underplating: Nickel 100 yw” [ 2.54 um ]
- Current Rating: 1A
- Insulation Resistance: > 1 x 10^9Ω at 500 VDC
- Withstanding Voltage: 1000 Vrms at Sea Level
- Temperature Rating: -40°C to 105°C
- Process Rating: 260°C (High Temp Nylon only)
- Maximum Molded Insulator Temperature: 191°C
- Maximum recommended mating header pin length: 0.101 [ 2.57 ]
- Dimensions: Length varies with contact number, from 0.20 [ 5.08 ] to 3.60 [ 91.44 ] inches
Buy the 3M Series 929 Electrical Connector: 929870013610
Purchase the 3M electrical connector online today for your electronic assembly needs. Its low-profile, straight design with solder tails ensures reliable and secure connections. Suitable for space-efficient applications, it withstands temperatures from -40°C to 105°C, with UL 94V-0 flammability rating. Made from durable copper alloy contacts plated with gold, tin lead, or matte tin, supporting up to 1A current, with high insulation resistance and dielectric withstand voltage. Perfect for manufacturing, repair, or prototyping, ensuring quality and performance.
Get 3M 929870013610 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy 3M 929870013610?
You can click on the BUY or RFQ button to purchase 929870013610 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 929870013610?
You can download the 929870013610 datasheet or visit the 3M website for support.
Who is the manufacturer of 929870013610?
3M
