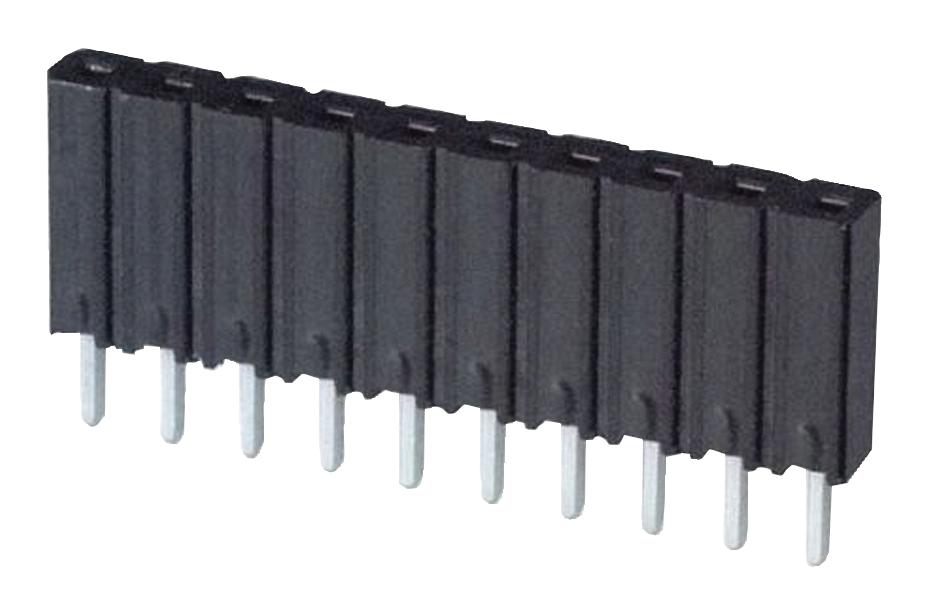

3M 9299740119RK Boardmount Socket
The 3M 929974-01-19-RK boardmount socket is a versatile interconnect solution suitable for a wide range of electronic applications. Its tuning fork contact design ensures secure connections, while solder standoffs simplify production processes. Available with various contact counts and plating options, this socket provides flexibility for diverse design requirements. It is commonly used in electronics, telecommunications, and industrial equipment where reliable board-to-board connections are essential.
3M 9299740119RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Underplating: 100 μ" Nickel
- Plating Wiping Area: See ordering information
- Solder Tails: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: > 5 × 10[9] Ω
- Withstanding Voltage: 1,500 VRMS
- Temperature Rating: -40ºC to +105ºC
- Process Rating: 260ºC
- UL File No: E68080
- Contact Quantity: 1-40 contacts on single row, 2-80 contacts on two row
Buy the 929974-01-19-RK 3M Boardmount Socket | myMectronic
Purchase the 3M 929974-01-19-RK Boardmount Socket securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy 3M 9299740119RK?
You can click on the BUY or RFQ button to purchase 9299740119RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299740119RK?
You can download the 9299740119RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299740119RK?
3M
