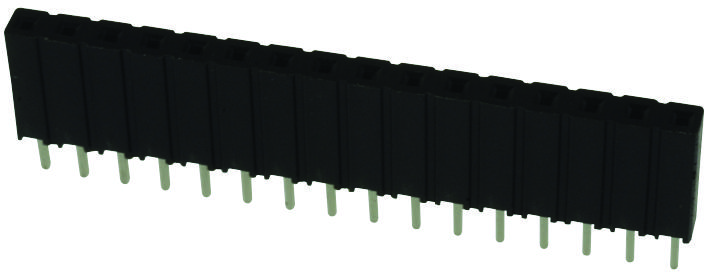

3M 9299740120RK Boardmount Socket
The 3M 929974-01-20-RK boardmount socket is a versatile connector solution for a wide range of electronic applications. Its tuning fork contact design ensures reliable signal transmission, while the solder standoffs simplify production wave soldering processes. The socket is available with various plating options, including tin-lead, matte tin, and gold, to meet specific application requirements. It is suitable for use in various industries, including telecommunications, data networking, and industrial automation.
3M 9299740120RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Underplating: 100 μ" [2.54 μm] Nickel
- Wiping Area: See ordering information
- Solder Tails: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: > 5 × 10[9] Ω at 500 VDC
- Withstanding Voltage: 1,500 VRMS at Sea Level
- Temperature Rating: -40ºC to +105ºC
- Process Rating: 260ºC (per J-STD-020C)
- UL File No: E68080
- Contact Quantity: 1-40 contacts on single row, 2-80 contacts on two row
Buy the 929974-01-20-RK 3M Boardmount Socket | myMectronic
Purchase the 3M 929974-01-20-RK Boardmount Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy 3M 9299740120RK?
You can click on the BUY or RFQ button to purchase 9299740120RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299740120RK?
You can download the 9299740120RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299740120RK?
3M
