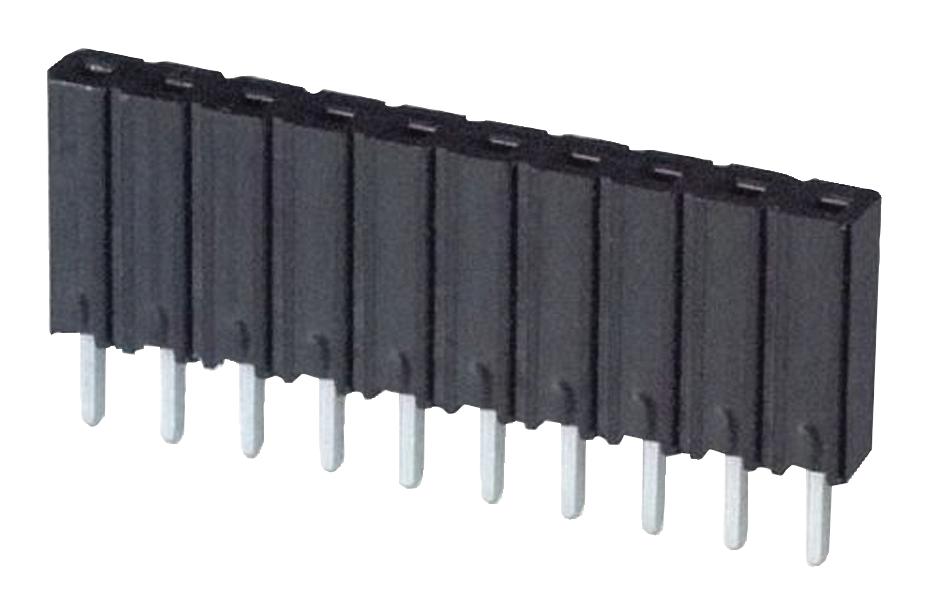

3M 9299740130RK Boardmount Socket
The 3M 929974-01-30-RK boardmount socket is a versatile interconnect solution designed for a wide range of electronic applications. Featuring a robust glass-filled polyester (PCT) insulator and a copper alloy contact design, this socket provides reliable electrical performance. The tuning fork contact design ensures secure connections, while solder standoffs simplify production wave soldering. Available with various plating options including tin-lead, matte tin, and gold, the 929974-01-30-RK socket caters to diverse application requirements. Its optional board retention feature enhances stability and prevents accidental disconnections.
3M 9299740130RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating Underplating: 100 μ" Nickel
- Plating Wiping Area: See ordering information
- Solder Tails: Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: > 5 × 10[9] Ω
- Withstanding Voltage: 1,500 VRMS
- Temperature Rating: -40ºC to +105ºC
- Process Rating: 260ºC
- UL File No.: E68080
- Contact Quantity: 1-40 contacts on single row, 2-80 contacts on two row
