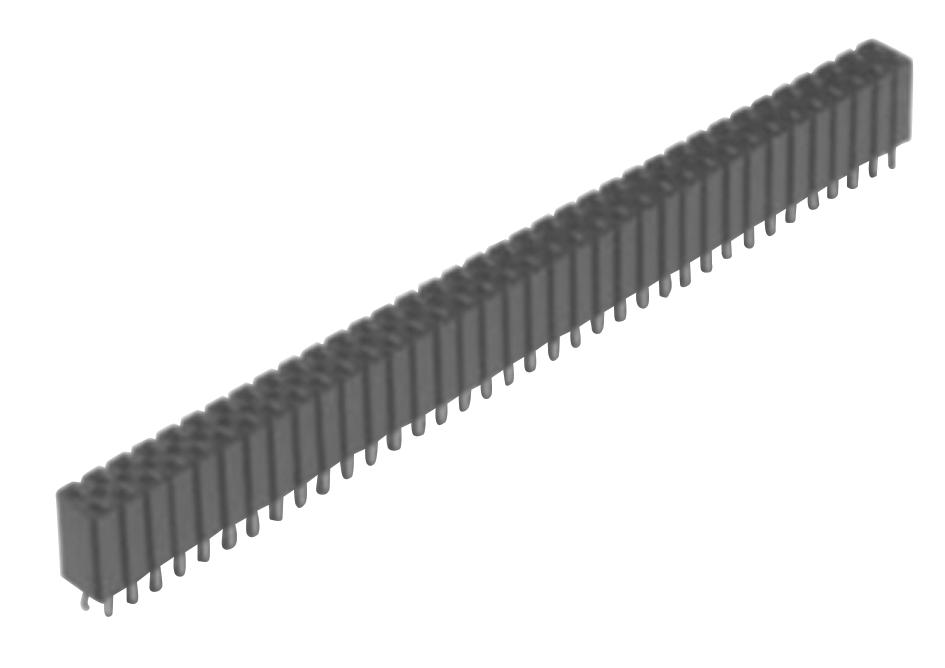

3M 9299750110RK Boardmount Socket
The 3M Boardmount Socket from the 929 Series offers a reliable connection solution with .100 inch and .100 x .100 inch straight solder tails, suitable for industrial and electronic applications. Featuring a tuning fork contact design, it ensures firm, durable connections, and readily supports wave soldering with precise solder stand-offs. Available with optional board retention, this socket supports varying contact quantities, from single to dual rows, and is constructed with heat-resistant materials like glass-filled polyester and copper alloy contacts. It is rated for 2 amps, withstands voltages over 1500V, and operates in temperatures from -40°C to +105°C, making it ideal for various demanding environments.
3M 9299750110RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: 100 microns Nickel; options include Tin Lead or Matte Tin
- Temperature Rating: -40°C to +105°C
- Current Rating: 2 amps maximum with all lines energized at 65°C ambient
- Insulation Resistance: >5 x 10^9 ohms at 500 V
- Withstanding Voltage: 1500V at Sea Level
- Process Rating: 260°C (per J-STD-020C), maximum insulator temperature 191°C
- Physical Dimensions: 0.20 inches (5.08 mm) to 4.00 inches (101.6 mm), includes options for contact quantities from 2 to 80, with board retention options
- Mounting Hole Tolerance: ±0.005 inches
Buy the 3M 929 Series U–2013 Reliable Boardmount Socket for Industrial Applications
Enhance your electronic assembly with 3M’s 929 Series Boardmount Socket, designed for reliable, high-current connections with optional board retention. This socket supports wave soldering, features a tuning fork contact design, and is made from UL 94V-0 flame-retardant polyester and copper alloy contacts plated with nickel and optional tin-lead or matte tin. Its temperature range of -40°C to +105°C ensures durability in various environments. Ideal for industrial, automation, and electronic manufacturing applications, this socket guarantees secure, long-lasting connections in electrical systems.
Buy 3M 929 Series Boardmount Socket now and experience unmatched reliability and performance for demanding electronic projects.
Frequently Asked Questions
Where can I buy 3M 9299750110RK?
You can click on the BUY or RFQ button to purchase 9299750110RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750110RK?
You can download the 9299750110RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750110RK?
3M
