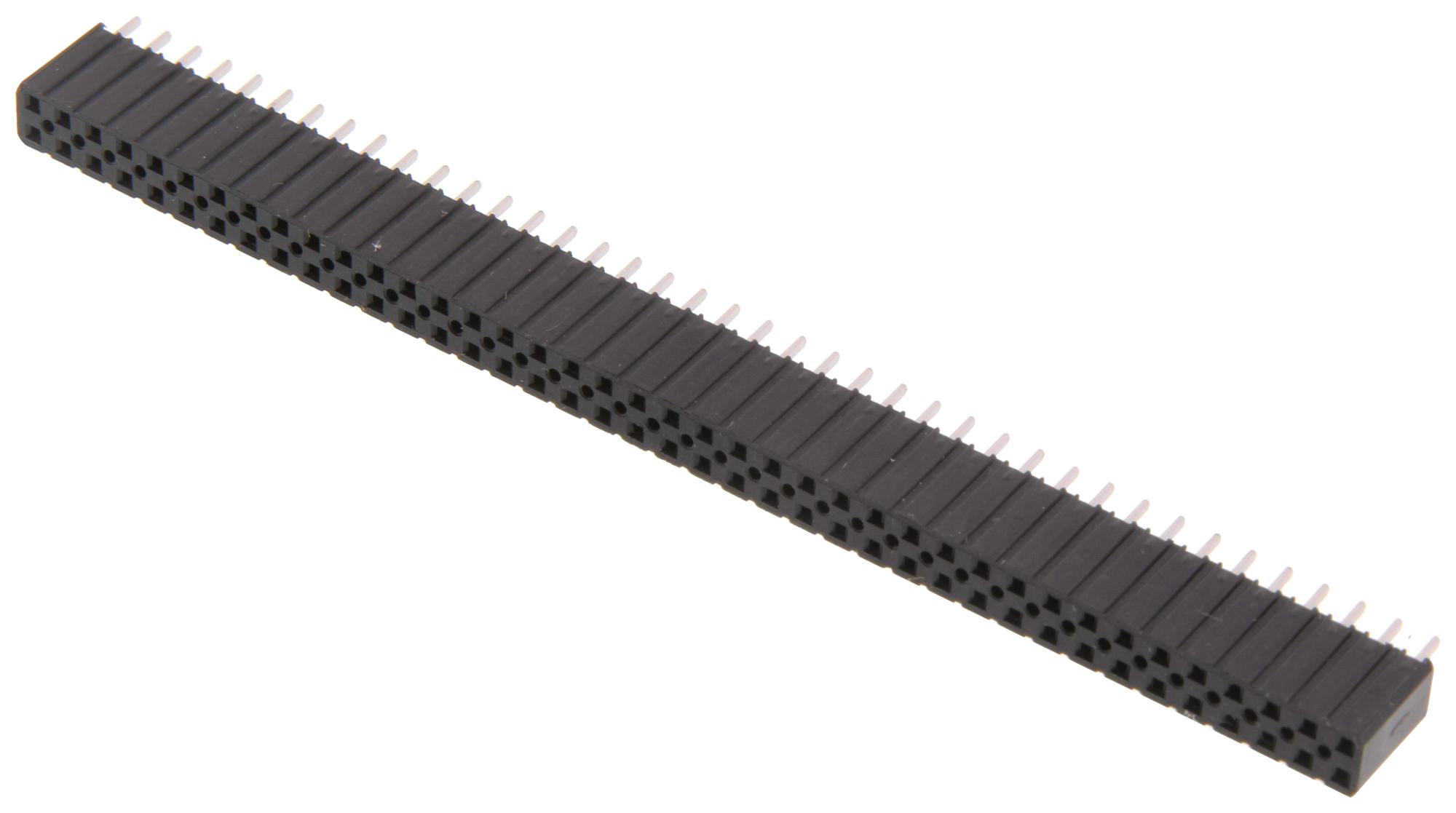

3M 9299750140RK Boardmount Socket
The 3M Boardmount Socket from the 929 Series offers a reliable and versatile connection solution for electronics applications. It features a glass filled polyester insulator with UL 94V-0 flammability rating and a sleek black color. The socket employs copper alloy contacts plated with nickel and optional tin-lead or matte tin finishes, ensuring excellent electrical conductivity and corrosion resistance. Designed for soldering, it includes solder standoffs to facilitate wave soldering and optional board retention features for secure mounting. With a current rating of 2 amps and insulation resistance exceeding 5 x 10^10 ohms at 500 V, it performs reliably in various environments, rated from -40°C to +105°C, and withstands voltage up to 1,500 V at sea level.
3M 9299750140RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel with optional Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Temperature: 260°C (J-STD-020C)
- Maximum Molded Insulator Temperature: 191°C
- Physical Dimensions: Ranging from 0.20 inch to 4.00 inch depending on contact quantity and configuration
- Mounting Features: Solder tails, optional board retention
- Compatible with 929 series and 2300 series headers
- Electrical Features: Suitable for wave soldering
- Certifications: UL Listed, RoHS Compliant
Buy the 3M 929 Series U+2013 Reliable Boardmount Socket for Industrial Applications
Purchase the reliable 3M 929 Series Boardmount Socket online today and enhance your electronics assembly with a high-quality, wave-solderable connector. Suitable for applications needing secure mounting, robust current capacity, and proven durability. These sockets feature solder tails, optional board retention, and are rated for temperatures from -40°C to +105°C. With a maximum current of 2 amps and high insulation resistance, they are ideal for various industrial and commercial electronic systems. Get your reliable PCB connection solution now with quick online ordering!
Order your 3M Series 929 Boardmount Socket today and ensure secure, high-performance connections for your electronic projects with dependable quality.
Frequently Asked Questions
Where can I buy 3M 9299750140RK?
You can click on the BUY or RFQ button to purchase 9299750140RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750140RK?
You can download the 9299750140RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750140RK?
3M
