3M 9299840120 boardmount connector

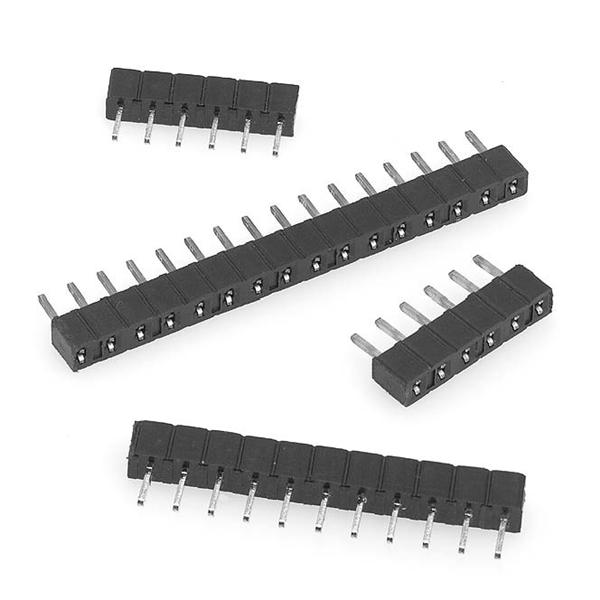

This 3M Boardmount Socket features a low-profile, straight design with solder tails, ideal for compact electronic assemblies. Made from glass-filled polyester or high-temperature nylon, it offers excellent insulation with UL 94V-0 flammability rating and contact surfaces plated with gold, tin lead, or matte tin. Rated for 1 A current and withstanding voltages up to 1000 Vrms, it performs reliably from -40°C to 105°C. Suitable for dense circuit boards, it facilitates wave soldering and stacking, ensuring secure and durable electrical connections for various industrial applications.
3M 9299840120 boardmount connector Specifications:
- Insulation Material: Glass Filled Polyester or High Temp Nylon
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold, Tin Lead, or Matte Tin
- Current Rating: 1 A
- Insulation Resistance: >10^10 Q at 500 VDC
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -40°C to 105°C
- Process Rating: 260°C (High Temp Nylon), Max molded insulator temp 191°C (Wave Solder)
- Dimensions vary with contacts from 0.20 to 3.60 inches, with specific hole pattern options
- Maximum recommended mating header pin length: 0.101 inches
Buy the 3M 9299840120 – Reliable Connector for Industrial Applications
Purchase the 3M low-profile boardmount connector online today for your electronic projects. Featuring a straight design with solder tails and high-temperature insulation, it ensures secure, reliable connections in dense circuit boards. Rated for up to 1 A and withstanding voltages of 1000 Vrms, this connector supports high-temperature manufacturing processes and wave soldering, making it perfect for industrial and manufacturing applications. Enjoy quick ordering and fast delivery to enhance your assembly reliability and performance.
Order your 3M Series929 Series 9299840120 today and give your electronic assemblies the dependable connection quality they deserve.
