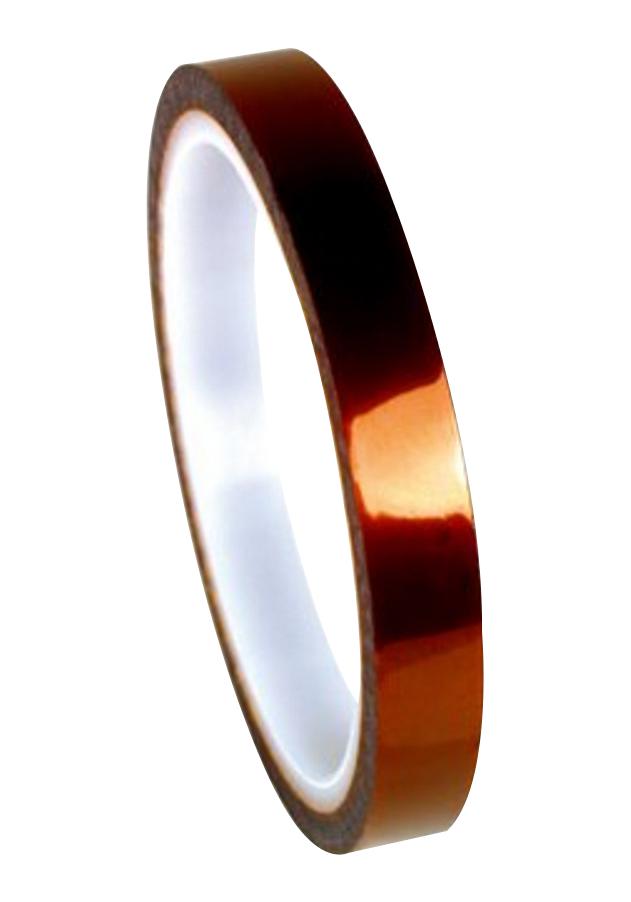

3M 92AMBER14X36YD Electrical Insulation Tape
3M™ Polyimide Film Electrical Tape 92 is a high-temperature, flame-retardant insulating tape featuring a 1-mil polyimide film backing with a silicone adhesive that withstands up to 356°F (180°C). It is ideal for electrical insulation in coils, transformers, printed circuit boards, and wire harnesses, offering excellent electrical properties, durability, and flexibility. This amber tape is designed for reliable performance in demanding thermal and electrical environments, complying with UL 510 and RoHS standards, making it suitable for both industrial and electronic applications.
3M 92AMBER14X36YD Electrical Insulation Tape Specifications:
- Color: Amber
- Backing Thickness: 1.0 mils (0,025 mm)
- Overall Thickness: 3.0 mils (0,076 mm)
- Tensile Strength: 30 Ibs / inch width (53 N / 10mm)
- Elongation at Break: 55% minimum
- Adhesive: Thermosetting Silicone pressure-sensitive
- Dielectric Breakdown: > 7,500 V
- Insulation Resistance: > 1 x 10^9 Ohms
- Electrolytic Corrosion Factor: 1.0
- Adhesion to Steel: 25 oz / inch width (2.8 N / 10 mm)
- Temperature Range: -40°F (-40°C) to 356°F (180°C)
- Shelf Life: 5 years from manufacture under controlled storage
Buy the 3M Series Electrical Polyimide Film Tape: 92AMBER14X36YD
Enhance your electrical projects with the durable and reliable 3M Polyimide Film Electrical Tape 92, featuring a high-temperature silicone adhesive that operates efficiently up to 356°F. Perfect for wrapping coils, transformers, and wires, this flame-retardant tape provides superior electrical insulation, flexibility, and chemical resistance. Ideal for printed circuit board assembly, wire harnessing, and coil insulation, it offers consistent performance and easy handling. Purchase online today to ensure your electronic applications are protected with quality and safety.
Buy 3M Polyimide Film Electrical Tape 92AMBER14X36YD now and experience unmatched reliability and performance in high-temperature electrical insulation.
Frequently Asked Questions
Where can I buy 3M 92AMBER14X36YD?
You can click on the BUY or RFQ button to purchase 92AMBER14X36YD from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 92AMBER14X36YD?
You can download the 92AMBER14X36YD datasheet or visit the 3M website for support.
Who is the manufacturer of 92AMBER14X36YD?
3M
