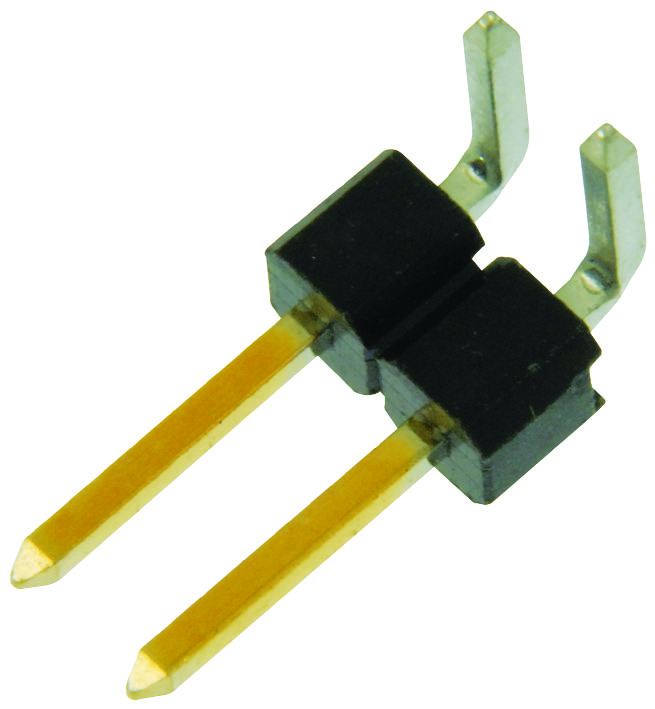

3M 9511027622AR Pin Strip Header
The 3M™ Pin Strip Header series features high-temperature dielectric, solder tails, and a stackable design. Available in straight and right-angle configurations, it maximizes PCB space and is compatible with board-mount and wire-mount types. Constructed with high-temperature thermoplastic insulation, copper alloy contacts, nickel underplating, and gold and tin finishes, it supports a current rating of 1A, withstands voltages up to 1000V, and operates from -40°C to +105°C. Suitable for electronic applications requiring reliable, RoHS-compliant connectors.
3M 9511027622AR Pin Strip Header Specifications:
- Insulation Material: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Underlayer: 1.25-2.5 pm Nickel
- Wiping Area: Flash Gold
- Solder Tail Area: 1-3 pm Matte Tin
- Current Rating: 1 A
- Insulation Resistance: > 5 x 10^10 Ohm at 100 V
- Withstanding Voltage: 1000 V
- Transition Resistance: < 20 mOhm
- Temperature Range: -40°C to +105°C
- Processing Temperature: Max 260°C
- Moisture Sensitivity Level: 1
- UL File No.: E68080
Buy the Buy 3M Electronic Components Part Number 9511027622AR Online
Secure your electronic assembly with the 3M pin strip header series, featuring high-temperature thermoplastic insulation, durable copper alloy contacts, and gold and tin finishes. This versatile connector is available in straight and right-angle options, supporting multiple configurations for optimal PCB space utilization. Designed to withstand voltages up to 1000V and operate from -40°C to +105°C, it is RoHS compliant and ideal for reliable, high-performance electronic applications. Purchase online today for quality and dependable connectivity solutions.
Order your 3M Series9511027622AR pin strip header today and enhance your electronic projects with reliable, high-temperature PCB connectors.
Frequently Asked Questions
Where can I buy 3M 9511027622AR?
You can click on the BUY or RFQ button to purchase 9511027622AR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9511027622AR?
You can download the 9511027622AR datasheet or visit the 3M website for support.
Who is the manufacturer of 9511027622AR?
3M
