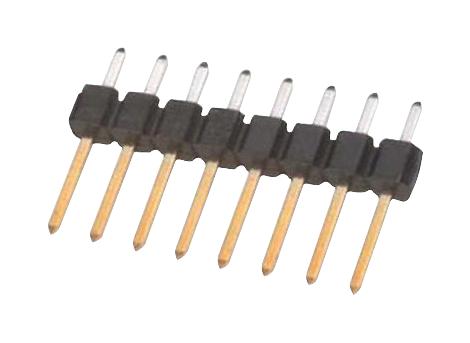

3M 9611366404AR Pin Strip Header
The 3M™ Pin Strip Header from the 961 Series is a high-density connector ideal for PCB applications requiring reliable electrical connections. Made with high-temperature thermoplastic insulation and copper alloy contacts, it features a solder tail design compatible with wave and reflow soldering processes. The connector supports 2A current, with insulation resistance exceeding 5 x 10^10 ohms at 100V, and withstands voltages up to 1000V. Its RoHS compliance, end stackable feature, and variety of configurations make it suitable for complex electronic assemblies, ensuring robust performance in demanding environments.
3M 9611366404AR Pin Strip Header Specifications:
- Insulation Material: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating Underplating: 1.25-2.5 pm Nickel
- Wiping Area Plating: Flash Gold
- Solder Tail Plating: 1-3 um Matte Tin
- Current Rating: 2A
- Insulation Resistance: > 5 x 10^10 Ohm at 100 V
- Withstanding Voltage: 1000 V
- Temperature Range: -25°C to +105°C
- Processing Temperature: max. 260°C
- Moisture Sensitivity Level: 1
- Color: Black
- Physical Dimensions: 2.54 mm pitch, 2-row or 1-row configurations, various pin lengths 55mm or 68mm, with PCB layout options
Buy the Buy 3M Pin Strip Header Part Number 9611366404AR Online
Purchase the 3M Pin Strip Header from the 961 Series online today for high-performance PCB connections. Designed with high-temperature thermoplastic and durable copper alloy contacts, this header supports 2A current, withstands up to 1000V, and is RoHS compliant. Its solder tail design is compatible with wave and reflow soldering, ensuring secure assembly. Available in single or dual-row configurations, with various pin lengths, it provides versatile options for complex electronic projects. Order now to ensure reliable, professional-grade connections for your manufacturing needs.
Buy 3M 9611366404AR pin strip header now and enjoy reliable, high-temperature PCB connections with versatile configurations and RoHS compliance.
Frequently Asked Questions
Where can I buy 3M 9611366404AR?
You can click on the BUY or RFQ button to purchase 9611366404AR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9611366404AR?
You can download the 9611366404AR datasheet or visit the 3M website for support.
Who is the manufacturer of 9611366404AR?
3M
