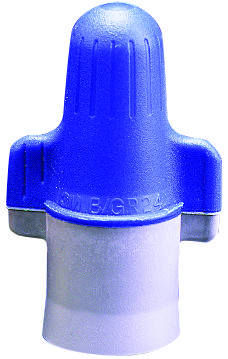

3M BGPOUCH Wire Connector
The B/G+ wire connector is UL listed and CSA certified for connecting and insulating multiple copper wires in electrical installations. Designed for solid or stranded copper conductors ranging from No. 14 to No. 6 AWG or 2.5 mm² to 10.0 mm², it features a corrosion-resistant spring, flame-retardant polypropylene insulator, and a maximum operating temperature of 105°C. Suitable for pigtail applications, the connector ensures secure, insulated connections in lighting fixtures and building wiring, tested per UL and ASTM standards for durability and safety across various environmental conditions.
3M BGPOUCH Wire Connector Specifications:
- Wire Range: No. 14 thru No. 6 AWG (solid or stranded), 2.5 mm² to 10.0 mm²
- Material: Copper conductors, corrosion-resistant spring steel, flame-retardant polypropylene insulator
- Color: Blue/Gray
- Operating Temperature: 105°C (221°F)
- Voltage Rating: 600 V in building wiring, 1000 V in signs and luminaires
- Certifications: UL Listed as Pressure Wire Connector, CSA Certified
- Test Standards: UL 486C, CSA C22.2 No. 188-M 1983
- Flammability Rating: UL94 V-2
- Construction: Spring-loaded, expansion type, rugged for industrial use
- Physical Weight: 0.0124 lbs (5.65 g)
- Environmental Tests: Salt Spray, Fluid Immersion (Acetic Acid, Acetone, Oils, Alcohols, etc.), UV Exposure
- Maximum Operating Temperature: 105°C
- Applicable for Pigtail Wires: 3-6 wires, 25mm²; 2-5 wires, 4.0 mm²; 2-4 wires, 6.0 mm²; 2 wires, 10mm²
- Standards Compliance: UL, CSA, MIL-STD-1344A
Buy the 3M BGPOUCH – Reliable Electrical Connector for Industrial Applications
Secure your electrical wiring with the durable and reliable 3M BGPOUCH wire connector. Certified by UL and CSA, it supports copper wires from No. 14 to No. 6 AWG, ensuring safe, insulated, and vibration-resistant connections. Designed for harsh environments, it withstands salt spray, fluid immersion, and UV exposure. Easy to install by tightening clockwise, it’s ideal for industrial and commercial applications requiring high safety standards. Purchase online today for fast shipping and dependable performance in your electrical projects.
Buy 3M BGPOUCH now and experience unmatched reliability and performance in electrical wire connections for industrial and commercial use.
Frequently Asked Questions
Where can I buy 3M BGPOUCH?
You can click on the BUY or RFQ button to purchase BGPOUCH from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part BGPOUCH?
You can download the BGPOUCH datasheet or visit the 3M website for support.
Who is the manufacturer of BGPOUCH?
3M
