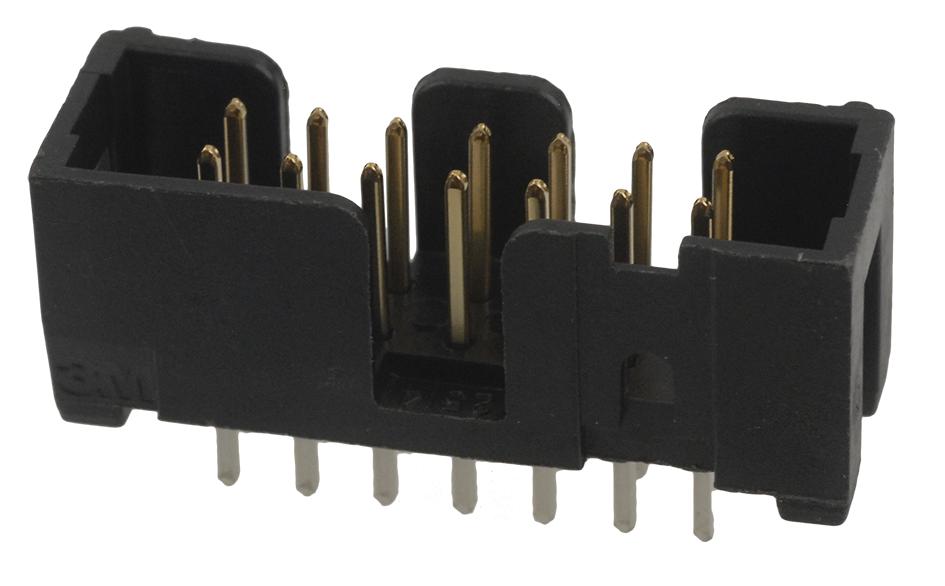

3M D25146002AR Four-Wall Header
The 3M Four-Wall Header series offers low profile, space-saving connectors suitable for SMT straight, right angle through-hole, or surface mount applications. Constructed from high temp glass-filled polyester with UL 94V-0 flammability rating, these connectors feature brass contacts with nickel underplating and gold or matte tin plating options. They support current ratings up to 5A per contact, withstand voltages of 1,000V, and operate in temperatures from -55°C to +105°C. Designed for smooth polarization, compatibility with various polarizing keys, and compliant with RoHS standards, this series provides reliable, vibration-resistant connections for high-density electronic assemblies.
3M D25146002AR Four-Wall Header Specifications:
- Material: High Temp Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Brass
- Plating: 50-100 µm Ni, 10 µm Gold or Matte Tin
- Current Rating: 5A per contact, 3A at 6 contacts, 1.75A at all contacts
- Insulation Resistance: >1x 10⁸ Ω at 500V
- Withstanding Voltage: 1000V RMS at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C single pass, reflow soldering
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the 3M Series D2500 Four-Wall Header: D25146002AR
Explore and purchase the 3M Four-Wall Header series online to enhance your electronic assembly projects with reliable, high-temperature connectors. Designed for SMT straight, right-angle, and through-hole use, these headers feature polarization, robust construction, and RoHS compliance. They ensure vibration resistance, easy cleaning, and consistent electrical performance in demanding environments. Whether you need surface mount or through-hole options, these connectors offer flexibility and durability, making them ideal for high-density applications. Order now to benefit from fast delivery and secure your electronic connections with trusted 3M quality.
Buy 3M series D2500 four-wall header with high-temperature insulator and polarization features now and experience unmatched reliability and performance.
