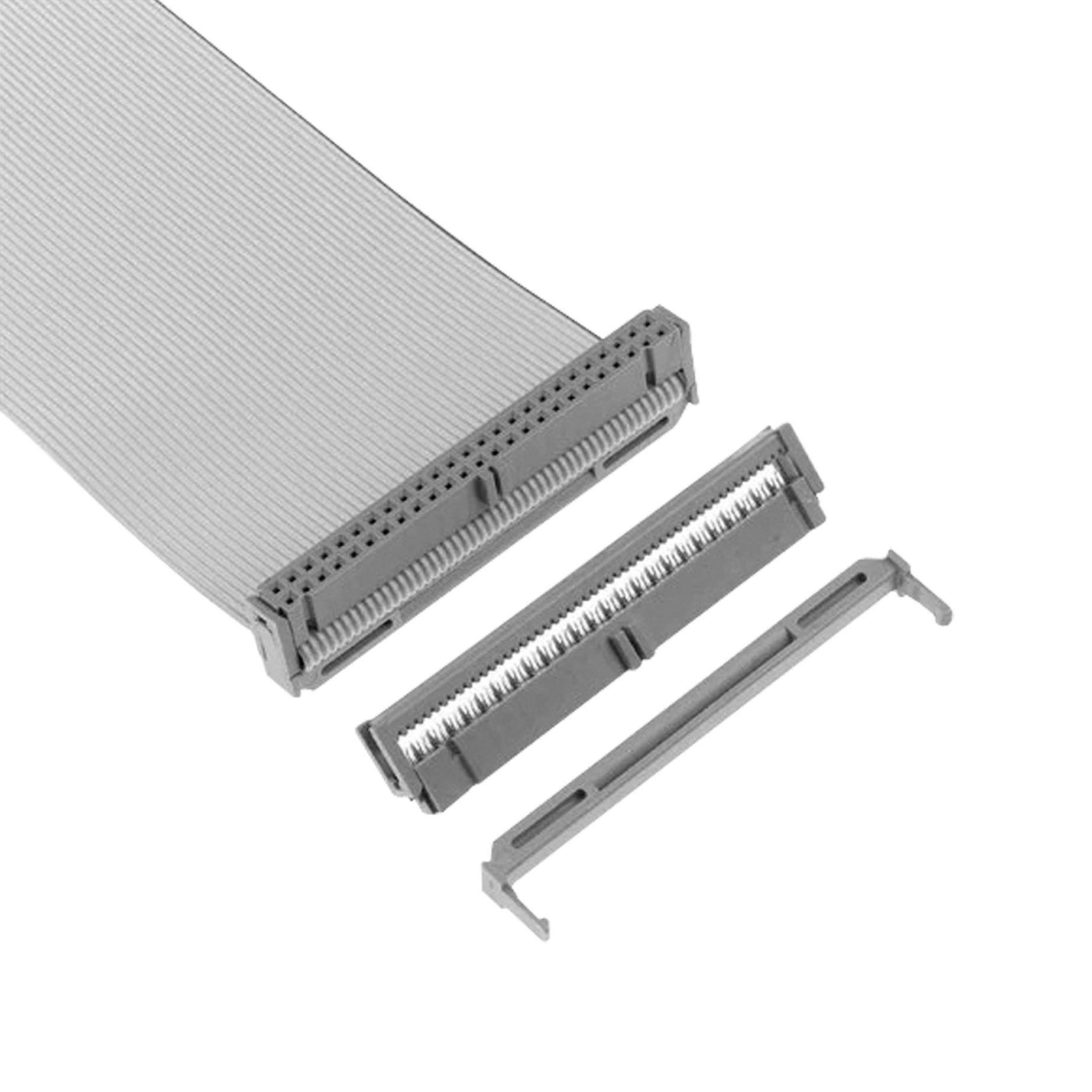

3M D891100101HK Ribbon Cable Socket
The 3M™ IDC Ribbon Cable Socket is a reliable connection component designed for 0.100” x 0.100” pitch cables, supporting 26 and 28 AWG stranded wires. This socket features preassembled packaging on swords for easy loading, optional dual polarization with or without center bump, and a double-recessed cover for versatile cable termination from either side. Made of UL 94V-0 glass-filled polyester, it offers excellent durability, RoHS compliance, and a secure connection with phosphor bronze contacts plated with 50 µ” nickel and 15 µ” gold. Suitable for electronic and industrial applications requiring dependable ribbon cable connections.
3M D891100101HK Ribbon Cable Socket Specifications:
- Material: Glass Filled Polyester with UL 94V-0 flammability rating
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: 50 µ” Nickel, 15 µ” Gold
- Wire Accommodation: 26 and 28 AWG stranded wires
- Current Rating: 28 AWG - 1.75 A; 26 AWG - 4.50 A
- Insulation Resistance: 1x 10^9Ω at 500 V
- Withstanding Voltage: 1,000 V at sea level
- Temperature Rating: -55°C to +105°C
- RoHS Compliant
- Dimensions: 0.100” x 0.100” pitch, various heights for different wire counts, length options from 8 to 60 positions
- Insertion Force: 7.6 N for typical cable, spacing varies with number of positions
- Package: Preassembled on swords, optional bulk packaging
- Compatibility: Accepts 26 and 28 AWG stranded wires, compatible with manual and semi-automatic assembly tools
Buy the 3M D89 Series U–2013 Reliable Ribbon Cable Socket for Industrial Applications
Purchase the 3M D89 Series IDC ribbon cable socket online today to benefit from easy assembly, durable design, and secure connections for your industrial and electronic needs. Designed for 0.100” pitch cables, it features preassembled packaging for quick loading, optional dual polarization, and RoHS compliance. Made from high-quality glass-filled polyester with phosphor bronze contacts plated in nickel and gold, this socket supports 26 and 28 AWG stranded wires. Perfect for dependable, versatile ribbon cable connections in manufacturing, automation, and electronic assemblies.
Order your 3M D89 Series ribbon cable socket today and ensure robust, reliable connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy 3M D891100101HK?
You can click on the BUY or RFQ button to purchase D891100101HK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part D891100101HK?
You can download the D891100101HK datasheet or visit the 3M website for support.
Who is the manufacturer of D891100101HK?
3M
