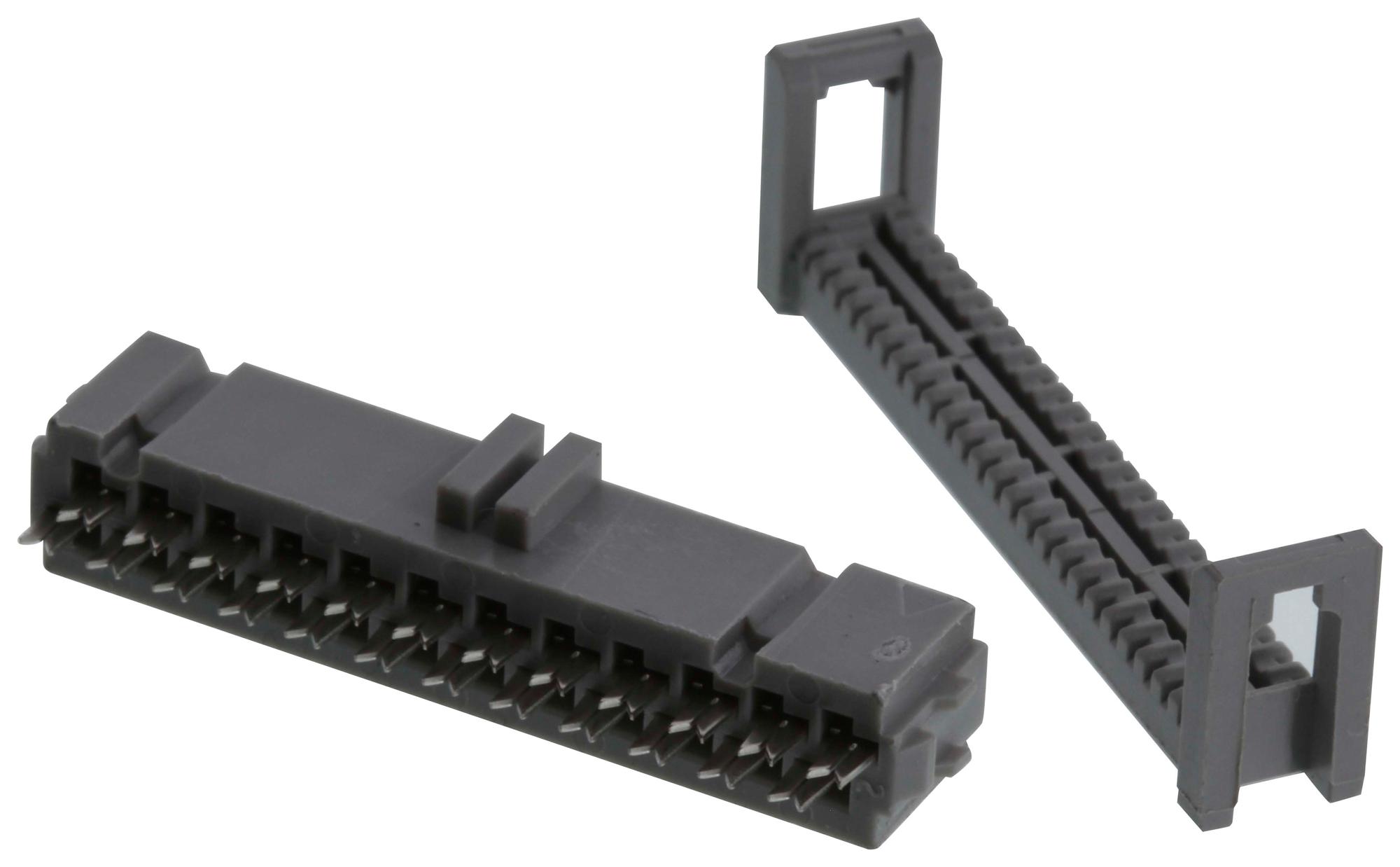

3M D891240131HK IDC Ribbon Cable Socket
The 3M™ IDC Ribbon Cable Socket D89 Series offers high-density, reliable connections for ribbon cables with .100 inch pitch and .050 inch wire diameter. Made from flame-retardant glass-filled polyester, it features gold-plated phosphor bronze contacts for superior electrical performance, supporting stranded wires from 26 to 28 AWG. The socket's design includes optional polarization and centerbump configurations, along with preassembled packaging for easy loading or bulk options. It withstands temperatures from -55°C to +105°C, making it suitable for demanding electronic applications requiring durable, space-efficient interconnect solutions.
3M D891240131HK IDC Ribbon Cable Socket Specifications:
- Material: Glass Filled Polyester
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Contact Plating: 50 µ inch Nickel, 15 µ inch Gold
- Wire Accommodation: 26-28 AWG stranded
- Current Rating: 1 line 6A, Adjacent Lines 1.75A, All Lines 1.25A
- Insulation Resistance: > 10^9 Ω at 500V
- Withstanding Voltage: 1000V at sea level
- Temperature Rating: -55°C to +105°C
- Environmental Compliance: RoHS
- Dimensions: 0.100 inches pitch, various length options as per series
- Packaging: Preassembled or bulk
Buy the Buy 3M IDC Ribbon Cable Socket Part Number D891240131HK Online
Purchase the 3M IDC Ribbon Cable Socket D891 Series online for efficient, high-density cable termination solutions. Designed for easy loading with preassembled packaging options, it supports stranded wires from 26 to 28 AWG, ensuring excellent electrical performance within a temperature range of -55°C to +105°C. Made from flame-retardant polyester with gold and nickel-plated contacts, this socket offers durability, RoHS compliance, and versatile polarization options. Ideal for electronic assemblies requiring secure, space-saving interconnects for ribbon cables in various electronic and industrial applications.
Get 3M IDC Ribbon Cable Socket D891240131HK today—built for high-density, reliable, and space-efficient electronic connections with RoHS compliance.
Frequently Asked Questions
Where can I buy 3M D891240131HK?
You can click on the BUY or RFQ button to purchase D891240131HK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part D891240131HK?
You can download the D891240131HK datasheet or visit the 3M website for support.
Who is the manufacturer of D891240131HK?
3M
