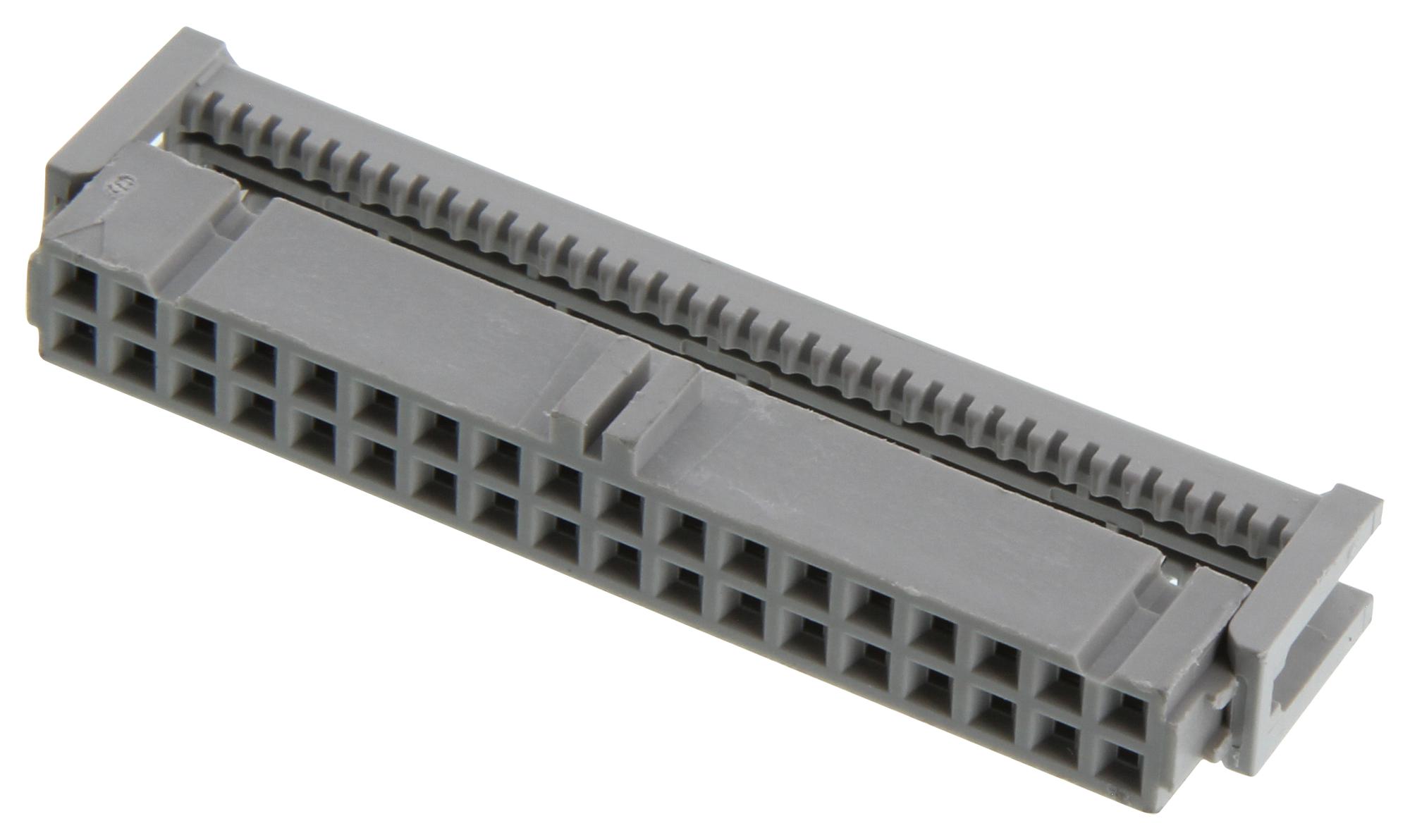

3M D891360101HK Ribbon Cable Connector
The 3M IDC Ribbon Cable Socket D89 Series provides a reliable, easy-to-use interconnect solution for flat ribbon cables with a 0.050-inch pitch. Constructed from glass-filled polyester with UL 94V-0 flammability rating, it features durable phosphor bronze contacts plated with 50 µin nickel and 15 µin gold for optimal conductivity and corrosion resistance. Designed for a temperature range from -55°C to +105°C, it supports wire sizes of 26 and 28 AWG stranded, with a high current rating and excellent insulation resistance. Specifications include dimensions for mounting, polarization options, and environmental compliance, making it suitable for industrial electronics.
3M D891360101HK Ribbon Cable Connector Specifications:
- Material: Glass Filled Polyester
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: 50 µin Nickel, 15 µin Gold
- Temperature Rating: -55°C to +105°C
- Wire Accommodation: 26 and 28 AWG Stranded
- Current Rating: 1 line 6A, 28 AWG 425mA; 26 AWG 4.50A
- Insulation Resistance: 1 × 10^9Ω at 500V
- Withstanding Voltage: 1000V for all lines
- Dimensions: 0.100” x 0.100” pitch, with specified mounting and spacing dimensions
- Environmental Compliance: RoHS
- Packaging: Preassembled or bulk packing options
- Operating Temperature Range: -55°C to +105°C
Buy the 3M D89 Series – Reliable Ribbon Cable Connector for Industrial Applications
Enhance your electronic assembly with the 3M D89 Series Ribbon Cable Socket, designed for 0.050-inch pitch ribbon cables. Features include high-quality phosphor bronze contacts plated with nickel and gold, durable glass-filled polyester housing, and RoHS compliance. Its reliable connection offers excellent current capacity, insulation resistance, and temperature range from -55°C to +105°C. Ideal for reliable industrial electronic applications, the socket is available preassembled or bulk-packed, making installation seamless and efficient. Secure your connection with this trusted interconnect solution today.
Buy 3M D89 Series ribbon cable socket now and experience unmatched reliability and performance for your industrial electronic connections.
Frequently Asked Questions
Where can I buy 3M D891360101HK?
You can click on the BUY or RFQ button to purchase D891360101HK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part D891360101HK?
You can download the D891360101HK datasheet or visit the 3M website for support.
Who is the manufacturer of D891360101HK?
3M
