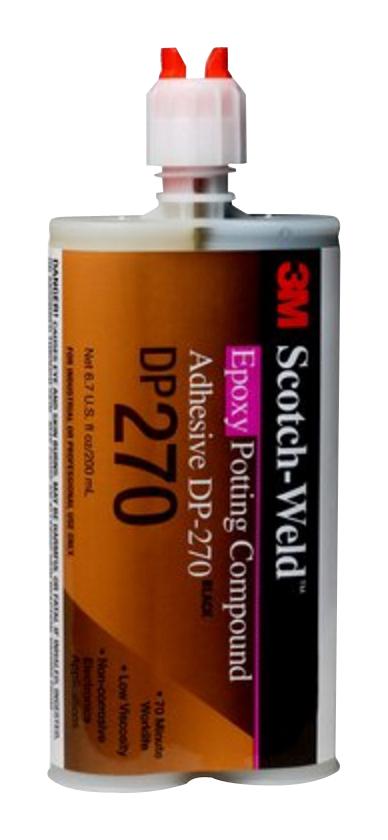

3M DP270BLACK400ML Epoxy Potting Compound Adhesive
3M Scotch-Weld DP270 is a versatile two-part epoxy potting compound and adhesive. Primarily used for potting, sealing, and encapsulating electronic components, it provides excellent thermal shock resistance, good electrical insulation, and is noncorrosive to copper. It's suitable for applications like potting transformers, coils, chokes, relays, and protecting heat-sensitive components like glass diodes and sensors. Available in bulk containers or the 3M EPX Applicator System for multi-station usage.
3M DP270BLACK400ML Epoxy Potting Compound Adhesive Specifications:
- product_description: Two-part, low viscosity epoxy resin system for potting, sealing, and encapsulation of electronic components. Available in clear or black.
- features: Good thermal shock resistance, excellent electrical properties, meets UL 94 HB, noncorrosive to copper, long worklife, negligible exotherm.
- color: Clear or Black
- base_resin: Epoxy/amine
- mix_ratio: 1:1 by volume (1:0.85 B:A by weight)
- net_weight_lbs_gal_base: 9.6 - 9.7
- net_weight_lbs_gal_accelerator: 8.0 - 8.2
- worklife: 60-70 minutes @ 23°C (73°F)
- viscosity_cps_base: 7000 - 16,000 @ 23°C (73°F)
- viscosity_cps_accelerator: 6000 - 12,000 @ 23°C (73°F)
- tack_free_time: Approx. 3 hours @ 23°C (73°F)
- cure_time: 48 hours @ 73°F (23°C)
- ul_rating: 94 HB (File No. E61941)
- weight_loss_tga_1_percent: 122°C (252°F)
- weight_loss_tga_5_percent: 175°C (347°F)
- weight_loss_tga_10_percent: 210°C (410°F)
- thermal_coefficient_expansion_below_tg: 80 x 10^-6 units/unit/°C
- thermal_coefficient_expansion_above_tg: 180 x 10^-6 units/unit/°C
- glass_transition_temperature_onset: 43°C (109°F)
- glass_transition_temperature_midpoint: 49°C (120°F)
- thermal_conductivity_btu_ft_hr_f: 0.103
- thermal_conductivity_cal_sec_cm_c: 0.426 x 10^3
- thermal_conductivity_watt_m_c: 0.177
- thermal_shock_resistance: Pass 5 cycles without cracking (Olyphant Test)
- dielectric_constant_1_khz: 3.5 @ 23°C (73°F)
- dissipation_factor_1_khz: 0.018 @ 23°C (73°F)
- dielectric_strength: 850 volts/mil
- volume_resistivity: 4.1 x 10^14 ohm-cm
- insulation_resistance_initial: 3 x 10^13 ohms
- insulation_resistance_1000_hrs: 2 x 10^11 ohms
- corrosion_test_35c: Pass - No copper corrosion
- solvent_resistance_acetone: B C
- solvent_resistance_isopropyl_alcohol: A B
- solvent_resistance_freon_tf: A A
- solvent_resistance_freon_tmc: B C
- solvent_resistance_rma_flux: A B
- overlap_shear_adhesion_aluminum_aluminum_etched_neg_67f: 1200-1250 psi
- overlap_shear_adhesion_aluminum_aluminum_etched_73f: 2450-2500 psi
- overlap_shear_adhesion_fr4_fr4_73f: 1750-1800 psi
- overlap_shear_adhesion_copper_copper_73f: 1700-1750 psi
- t_peel_adhesion_aluminum_aluminum_etched: < 2 piw
- compression_strength: 8100 psi
