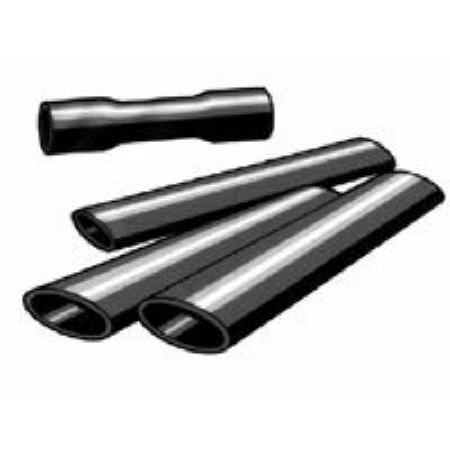

3M FP3011848BLACKHDR25PCS Polyolefin Heat Shrink Tubing
High-quality polyolefin heat shrink tubing from the FP-301 series offers excellent electrical performance and environmental protection. This thin-wall tubing features a 2:1 shrink ratio, making it ideal for cable splices, terminations, wire harness coverings, wire marking, component packaging, and fire-resistant applications. It complies with MIL-I-23053/5 Class 1 and 2, as well as AMS 3636 and AMS 3637 standards. The tubing is UL recognized and CSA certified for 600V at 125°C. Each piece is 48 inches long, with dimensions and properties suitable for demanding industrial use.
3M FP3011848BLACKHDR25PCS Polyolefin Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Maximum Shrink Temperature: 100°C (212°F)
- Operating Temperature Range: -67°F to 275°F (-55°C to 135°C)
- Voltage Rating: 600 volts @ 125°C
- Physical Length: 48 inches
- Material: Polyolefin
- Color options: Black (others available by request)
- Tensile Strength: 2400 PSI
- Dielectric Strength: 900 V/mil
- Volume Resistivity: 10^14 ohm-cm
- Water Absorption: 0.2%
- Certifications: UL Recognized, CSA Certified, MIL-DTL-23053/5 Class 1 & 2
- Applicable Standards: AMS 3636, AMS 3637
- Flame Retardant: Yes (Class 1), meets UL 224
- Temperature Resistance: Short term to 300°C (572°F)
- Durability: Cold flow resistant, mechanically tough, resistant to chemicals
Buy the 3M Series FP-301 Polyolefin Heat Shrink Tubing: FP3011848BLACKHDR25PCS
Order the 3M FP-301 polyolefin heat shrink tubing now and enjoy superior electrical insulation, environmental resistance, and easy installation. This versatile tubing features a 2:1 shrink ratio, is UL recognized, CSA certified, and ideal for cable splices, wire harnessing, component packaging, and fire-resistant applications. With a length of 48 inches, it provides reliable insulation for industrial use, ensuring safety and durability across applications. Purchase online today for fast delivery and reliable performance in demanding environments.
Get 3M FP-301 UV-resistant polyolefin heat shrink tubing today—built for precision, durability, and electrical insulation over cable splices and wire harnesses.
Frequently Asked Questions
Where can I buy 3M FP3011848BLACKHDR25PCS?
You can click on the BUY or RFQ button to purchase FP3011848BLACKHDR25PCS from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FP3011848BLACKHDR25PCS?
You can download the FP3011848BLACKHDR25PCS datasheet or visit the 3M website for support.
Who is the manufacturer of FP3011848BLACKHDR25PCS?
3M
