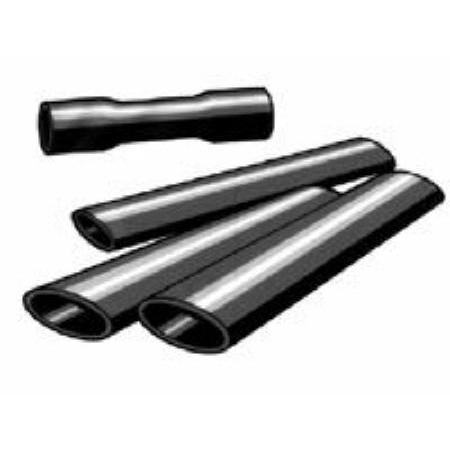

3M FP30131648BLACKHDR25PC Polyolefin Heat Shrink Tubing
High-quality polyolefin heat shrink tubing from the FP-301 series offers excellent electrical performance and durability. The thin-wall design provides maximum environmental protection. With a 2:1 shrink ratio, it is ideal for cable splices and terminations, wire harness covering, wire marking, component packaging, and fire-resistant applications. It complies with MIL-I-23053/5 Class 1 and 2, and AMS 3636 and 3637 standards. UL recognized and CSA certified for 600V at 125°C. Each piece measures 48 inches in length.
3M FP30131648BLACKHDR25PC Polyolefin Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to 135°C (275°F)
- Short-term Temperature Resistance: Up to 300°C (572°F)
- Voltage Rating: 600 volts
- Minimum Shrink Temperature: 100°C (212°F)
- Color: Black (other colors available)
- Length: 48 inches per piece
- Material: Polyolefin
- Compliance: MIL-DTL-23053/5 Class 1 & 2, AMS-3636, AMS-3637
- UL Recognition: E-39100, E-69751
- CSA Certification: 38227
- Tensile Strength: 2400 PSI
- Dielectric Strength: 900 V/mil
- Volume Resistivity: 10^15 ohm-cm
- Water Absorption: 0.2%
Buy the 3M Series FP-301 Polyolefin Heat Shrink Tubing: FP30131648BLACKHDR25PC
Order the 3M FP-301 series polyolefin heat shrink tubing online today for reliable, high-performance electrical insulation suited for cable splices, wire harnessing, and high-temperature environments. Its 2:1 shrink ratio ensures a snug fit over various components, offering excellent chemical resistance, flame retardancy, and compliance with industry standards. Perfect for industrial applications requiring durability and safety, this tubing is UL recognized and CSA certified for 600 volts at 125°C, ensuring your projects meet safety and quality benchmarks efficiently.
Buy 3M FP-301 polyolefin heat shrink tubing now and experience unmatched electrical insulation, durability, and versatility for your industrial needs.
Frequently Asked Questions
Where can I buy 3M FP30131648BLACKHDR25PC?
You can click on the BUY or RFQ button to purchase FP30131648BLACKHDR25PC from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FP30131648BLACKHDR25PC?
You can download the FP30131648BLACKHDR25PC datasheet or visit the 3M website for support.
Who is the manufacturer of FP30131648BLACKHDR25PC?
3M
