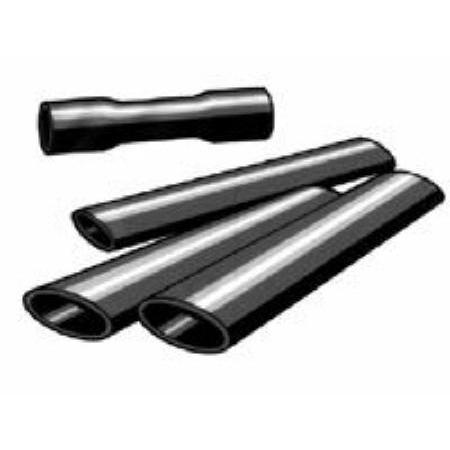

3M FP3013848BLACKHDR Polyolefin Heat Shrink Tubing
High-quality polyolefin heat shrink tubing from the FP-301 series provides excellent electrical insulation, chemical resistance, and environmental protection. Rated for continuous operation up to 135°C, it features a 2:1 shrink ratio, making it suitable for cable splices, wire harness covering, wire marking, component packaging, and fire-resistant applications. Meets MIL-DTL-23053/5 Class 1 & 2, AMS-3636, AMS-3637 standards. UL Recognized and CSA Certified for 600V at 125°C. Standard length is 48 inches, available in multiple colors including black, white, red, blue, green, yellow, and clear, with overexpansion options upon request.
3M FP3013848BLACKHDR Polyolefin Heat Shrink Tubing Specifications:
- Material: Polyolefin
- Shrink Ratio: 2:1
- Maximum Operating Temperature: 135°C (275°F)
- Minimum Shrink Temperature: 100°C (212°F)
- Voltage Rating: 600V (UL Recognized, CSA Certified)
- Color Options: Black, white, red, blue, green, yellow, clear
- Length: 48 inches per piece
- Tensile Strength: 2400 PSI
- Ultimate Elongation: 400%
- Dielectric Strength: 900 V/mil
- Volume Resistivity: 10^10 ohm-cm
- Water Absorption: 0.2%
- Applicable Standards: MIL-DTL-23053/5 Class 1 & 2, AMS-3636, AMS-3637, UL File Nos. E-39100 and E-69751, CSA No. 38227
Buy the Buy 3M FP-301 Heat Shrink Tubing Part Number FP3013848BLACKHDR Online
Order 3M FP-301 polyolefin heat shrink tubing online today and enjoy superior electrical insulation, chemical resistance, and environmental protection. With a 2:1 shrink ratio, it easily fits over cable splices and wiring components, providing a tight, reliable seal. This versatile tubing meets stringent MIL-DTL-23053/5 Class 1 and 2 standards, UL recognition, and CSA certification at 600V and 125°C, making it ideal for industrial, military, and electronics applications. Standard 48-inch lengths are available in multiple colors for easy identification and organization.
Buy 3M FP-301 heat shrink tubing now and ensure reliable electrical insulation with durable polyolefin protection, perfect for industrial wiring and cable management.
Frequently Asked Questions
Where can I buy 3M FP3013848BLACKHDR?
You can click on the BUY or RFQ button to purchase FP3013848BLACKHDR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FP3013848BLACKHDR?
You can download the FP3013848BLACKHDR datasheet or visit the 3M website for support.
Who is the manufacturer of FP3013848BLACKHDR?
3M
