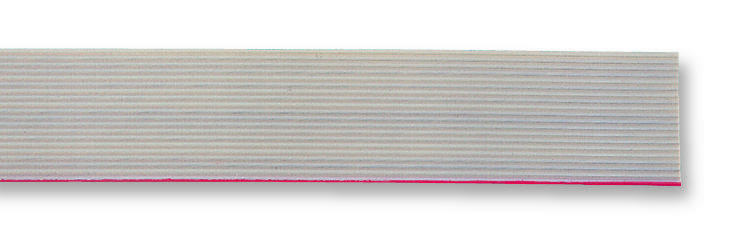

3M HF36510 Halogen-Free Flat Cable
The 3M HF365 Series is a low smoke zero halogen flat cable with stranded copper conductors, ideal for industrial and electronic applications requiring safe, halogen-free wiring. Featuring a halogen-free polyolefin jacket in dark gray, it offers excellent electrical performance with voltage ratings of 300V in the USA and 150V in Canada. Operating within a temperature range of -40°C to +105°C, this cable is suitable for branching, discrete terminations, and mass termination to IDC connectors. Its broad specifications include impedance, capacitance, inductance, and propagation delay, ensuring high reliability in critical environments.
3M HF36510 Halogen-Free Flat Cable Specifications:
- Jacket Material: Halogen Free Polyolefin
- Color: Dark Gray
- Conductors: 28 AWG, 7 x 36 AWG Tinned Stranded Copper
- Voltage Rating: 300V in USA, 150V in Canada, <50V EU
- Insulation Resistance: > 110^9 Q/10ft
- Characteristic Impedance: 100-168 Q unbalanced, 100-168 Q balanced
- Capacitance: 15.0 pF/ft (unbalanced), 8.4 pF/ft (balanced)
- Inductance: 0.15 wH/ft (unbalanced), 0.24 wH/ft (balanced)
- Propagation Delay: 1.51 ns/ft (unbalanced), 1.42 ns/ft (balanced)
- Velocity of Propagation: 68% unbalanced, 72% balanced
- Temperature Range: -40°C to +105°C
- Flammability Rating: UL Horizontal
- Compliance: RoHS, UL, IEC 61249-2-21
- Physical Dimensions vary with model, typical center-to-center spacing of .050 inches, length options from 300 to 600 mm
- Environmental: Halogen-Free, Low Smoke, Low Toxicity in combustion gases
Buy the 3M HF365 Series – Reliable Halogen-Free Flat Cable for Industrial Applications
Order the 3M HF365 Series flat cable online today and enjoy quick delivery of a safe, reliable, low smoke, halogen-free wiring solution suitable for critical environments. Its stranded copper conductors and broad temperature tolerance ensure optimal performance and safety in industrial, electronic, and safety applications. Perfect for mass termination and discrete connections, this cable's UL and RoHS compliance guarantee high standards. Make your purchase now and secure dependable wiring that meets stringent safety and performance standards for demanding applications.
Buy 3M HF365 Series flat cable now and ensure safe, high-performance wiring in your industrial or electronic projects.
Frequently Asked Questions
Where can I buy 3M HF36510?
You can click on the BUY or RFQ button to purchase HF36510 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part HF36510?
You can download the HF36510 datasheet or visit the 3M website for support.
Who is the manufacturer of HF36510?
3M
