3M N102145212PC Shielded Ribbon Connector
The 3M™ Mini D Ribbon MDR Connectors are shielded, right-angle boardmount receptacles designed for reliable connections in electronic systems. Featuring wiper-on-wiper contacts for repeated use, a robust die-cast metal case, and SMT-compatible PCT insulator material, these connectors accommodate 14 to 100 contacts. They include interfaces such as IEEE 1284C, and come with ground lock options for secure PCB retention. Suitable for various industrial applications, they withstand temperatures from -55°C to +105°C, with electrical ratings up to 1 A and insulation resistance exceeding 5 x 10⁸Ω.
3M N102145212PC Shielded Ribbon Connector Specifications:
- Contact Quantity: 14, 20, 26, 36, 40, 50, 68, 80, 100
- Insulation Material: Glass Reinforced Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: 80 1” Nickel underplating, gold flash wiping area, gold flash over nickel solder tails
- Body Material: Zinc Alloy, Nickel plated
- Ground Lock Material: Copper Alloy, Tin with gold flash plated tail
- Shroud & Latch Hook: Steel, Nickel plated
- Current Rating: 1 A
- Insulation Resistance: > 5 x 10⁸Ω at 500 Vdc
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C (profile per J-STD-020C)

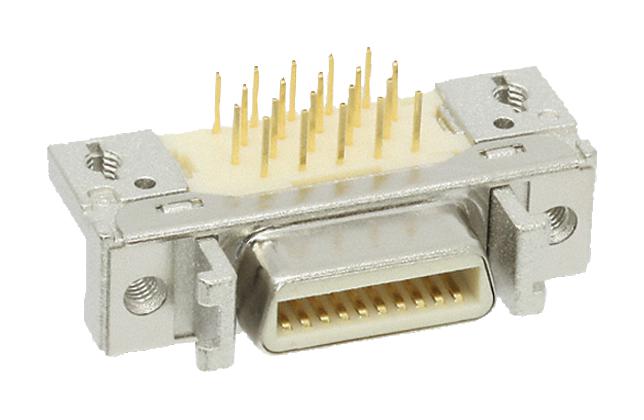

Buy the 3M Series 102 Shielded Receptacle: N102145212PC
Experience seamless, high-quality electronic connections with the 3M Shielded Ribbon Connector. Designed for durability and reliable performance, it features a rugged die-cast metal case, multiple contact options, and broad temperature tolerance. Suitable for industrial and electronic applications, it ensures secure PCB attachment with ground lock options and interface stability. Easy to install with precise dimensions, this connector supports stress-free repeated plugging, supports IEEE 1284C interface, and withstands harsh environments. Buy online now for dependable connectivity solutions.
Order your 3M Series 102 Shielded Receptacle today and secure reliable, durable electronic connections with proven technical performance.
