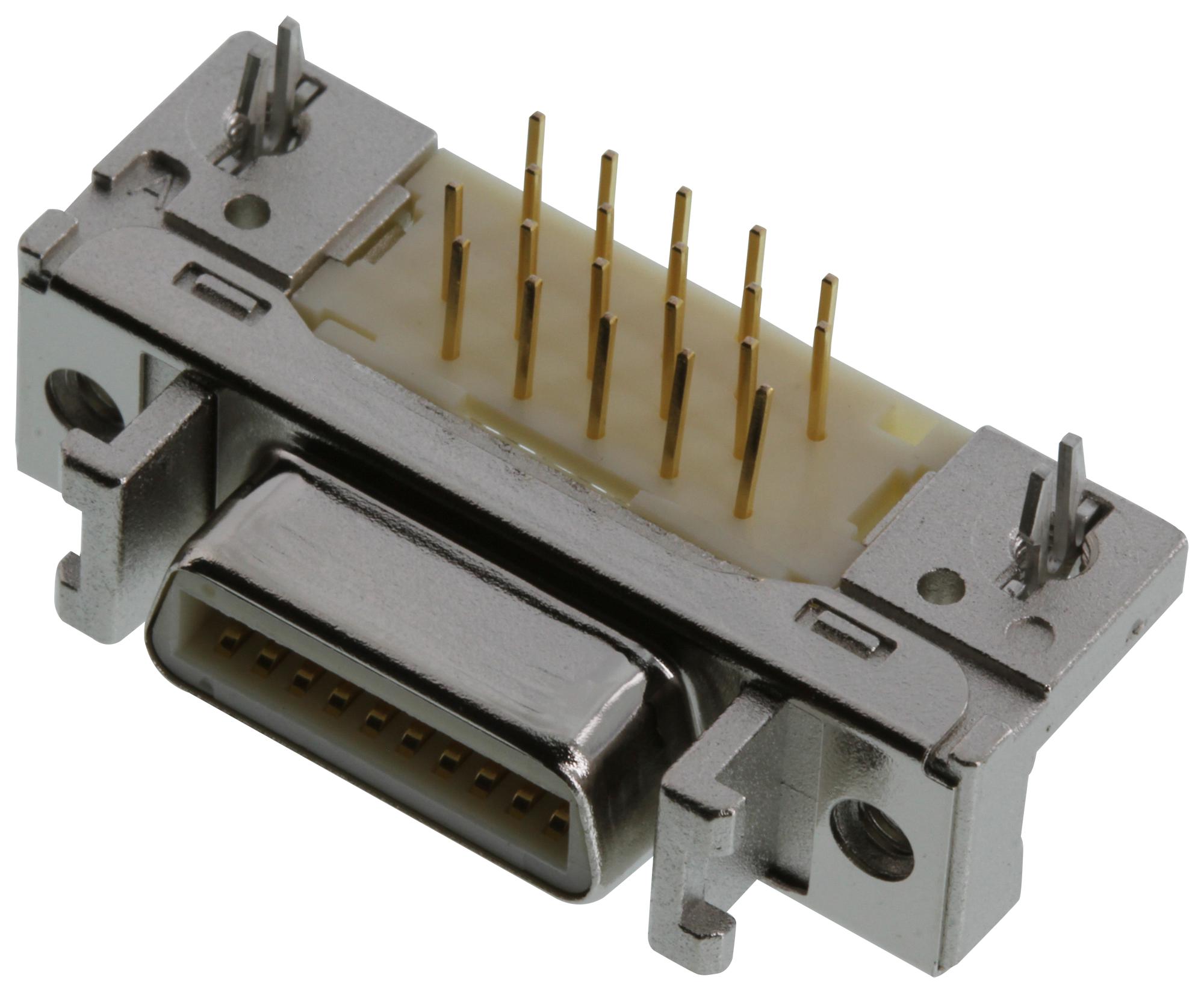

3M N1022052B2PC Connector
The 3M™ Mini D Ribbon Connectors are high-reliability, shielded right-angle receptacles designed for PCB mounting, featuring multiple contact options from 14 to 100 positions. Constructed with rugged die cast zinc bodies, glass-reinforced polyester insulators, and gold-plated contacts, these connectors facilitate secure, stable connections for electronic interface applications such as IEEE 1284C. They withstand temperature ranges from -55°C to +105°C and provide electrical ratings up to 1 A per contact. Easy to install with screw and ground lock options, these connectors are RoHS compliant and suitable for demanding electronic environments.
3M N1022052B2PC Connector Specifications:
- Insulation Material: Glass Reinforced Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Nickel underplate, gold flash wiping area, gold over nickel solder tails, tin on ground lock
- Body Material: Zinc Alloy with nickel plating
- Shroud & Latch Hook: Steel, nickel plated
- Current Rating: 1 A per contact
- Insulation Resistance: > 5 x 108Ω at 500 Vpc
- Withstanding Voltage: 500 V ac for 1 minute
- Temperature Range: -55°C to +105°C
- Panel Thickness: Max 0.079 inches (2.00 mm)
- Dimensions vary with contact count, ranging from 0.300 inches (7.62 mm) for 14 contacts to 2.94 inches (74.6 mm) for 100 contacts
- Connector class: Shielded, right angle, boardmount, thru-hole
- RoHS Compliant: Yes
- Applicable for IEEE 1284C interface
- Contact Sizes: 14, 20, 26, 36, 40, 50, 68, 80, 100
- Environmental: Meets UL standards and chemical compliance requirements
Buy the 3M Series 102 Shielded Connector: N1022052B2PC
Discover the high-quality 3M Series 102 shielded PCB connectors designed for reliable electronic interfaces. Suitable for IEEE 1284C applications, these connectors feature durable zinc bodies, gold-plated contacts, and a range of contact counts from 14 to 100. They are engineered for stable, secure connections with temperature tolerance from -55°C to +105°C and electrical ratings up to 1 A per contact. Easy to install with screw and ground lock options, ensuring long-lasting performance in demanding electronic environments. Shop online now for trusted quality and flexible configurations.
Get 3M Series 102 shielded connector today—built for precision, durability, and versatile PCB mounting solutions.
