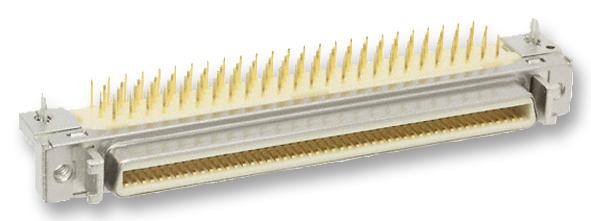

3M N102A052E2PC Data Ribbon Connector
The 3M Mini D Ribbon Connectors are shielded, right-angle, boardmount thru-hole receptacles designed for reliable, repetitive plugging with wiper-on-wiper contact. Constructed with a rugged die cast metal case, these connectors feature a PCT insulator material compatible with SMT, ensuring secure PCB retention through screw or ground lock options. Supporting interfaces like IEEE 1284C with 36 contacts, they come in various contact configurations (14, 20, 26, 36, 40, 50, 68, 80, and 100). These high-performance connectors meet UL 94V-0 flammability standards and operate in temperatures from -55°C to +105°C, suitable for industrial, electronic, and data applications.
3M N102A052E2PC Data Ribbon Connector Specifications:
- Insulation Material: Glass Reinforced Polyester (PCT)
- Flammability: UL 94V-0
- Color: Beige
- Contact Material: Copper Alloy
- Plating: Underplating Nickel 2.0 μm, Gold Wiping Area, Gold Flash over Nickel for Solder Tail
- Body Material: Zinc Alloy, Nickel Plated
- Ground Lock Material: Copper Alloy, Tin and Gold Flash Plated
- Shroud & Latch Hook: Steel, Nickel Plated
- Current Rating: 1 A
- Insulation Resistance: > 5 x 10^8Ω at 500 V
- Withstanding Voltage: 500 V AC for 1 Minute
- Temperature Rating: -55°C to +105°C
- Process Rating: 260°C (per J-STD-020C)
Buy the 3M N102A052E2PC – Reliable Data Ribbon Connectors for Industrial Applications
Purchase 3M N102A052E2PC online today—these shielded mini ribbon connectors are ideal for industrial data and electronics, offering robust construction, reliable multi-contact interfaces, and compatibility with a wide range of PCB configurations. Designed for high durability, they feature rugged die cast metal cases, gold-plated contacts, and are suitable for through-hole mounting with various locking options including screw and ground locks. Support for IEEE 1284C interface ensures excellent performance in data transfer applications, making them an essential component for reliable, long-lasting electronic connections.
Get 3M N102A052E2PC today—built for precision, durability, and reliable PCB connections in industrial environments.
Frequently Asked Questions
Where can I buy 3M N102A052E2PC?
You can click on the BUY or RFQ button to purchase N102A052E2PC from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N102A052E2PC?
You can download the N102A052E2PC datasheet or visit the 3M website for support.
Who is the manufacturer of N102A052E2PC?
3M
