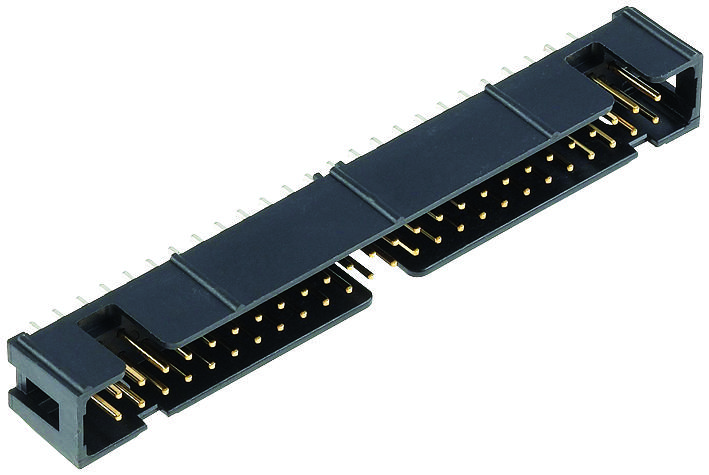

3M N25146002RB Four-Wall Connector
The 2500 Series offers versatile electronic component mounting options including low-profile surface-mount and through-hole connectors. They feature a compact design with optional high-temperature insulators, polarization features for broad compatibility, and exposed solder tails for easy cleaning. Made from glass-filled polyester with copper alloy contacts, these connectors are rated for up to 5A, withstand temperatures from -55°C to +105°C, and are UL-listed. Ideal for reliable, space-saving connections in complex electronic assemblies, these connectors support reflow soldering and vibration-resistant applications, making them suitable for a wide range of industrial and electronic uses.
3M N25146002RB Four-Wall Connector Specifications:
- Insulator Material: Glass Filled Polyester (PBT) or High Temp PCT
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold or Matte Tin wiping area
- Solder Tails: 200’ [5.08 um] Tin Lead or Matte Tin, 30p” [0.76um] Gold plating options
- Current Rating: 5.00 A; 3.00 A with 6 contacts; 1.75 A all contacts powered
- Insulation Resistance: >1 x 10’ ohms at 500 V
- Withstanding Voltage: 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Process Rating: High Temp PCT insulator 260°C, PBT insulator 191°C
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the Buy 3M 2500 Series Connector Part Number N25146002RB Online
Purchase the 3M 2500 Series Four-Wall Connector N25146002RB online today to enhance your electronic projects with dependable, space-saving, high-temperature rated connection solutions. Featuring low-profile surface-mount and through-hole designs, these connectors support reflow soldering and provide polarization for broad compatibility. Made with durable copper alloy contacts and UL-rated materials, they excel in vibration resistance, ease of cleaning, and reliable electrical performance. Perfect for industrial electronics, control systems, and complex circuit assemblies, streamline your manufacturing process by ordering online now.
Order your 3M 2500 Series connector N25146002RB today and ensure your electronic assemblies achieve space-efficient, reliable, high-performance connections.
