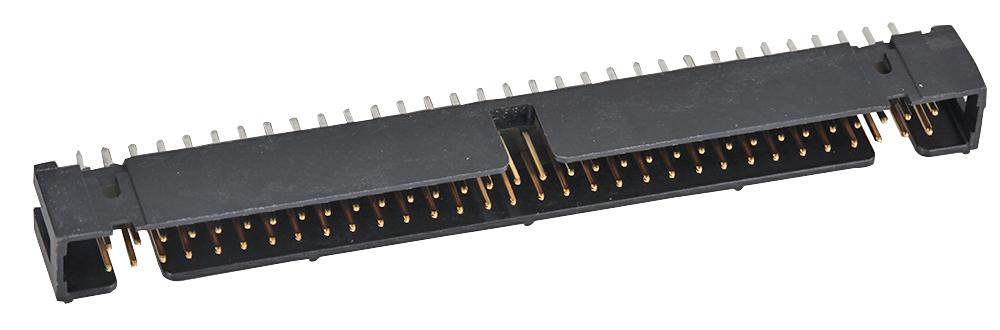

3M N25646002RB Header Connector
The 3M™ 4-Wall Header offers a low-profile, space-saving design suitable for various industrial applications. Its straight and right angle configurations include dual slot polarization for broader compatibility, with optional retainers enhancing connection reliability in vibration-prone environments. Made from glass-filled polyester with UL 94V-0 flammability rating and RoHS compliance, it features high-temperature insulators, exposed solder tails for easier cleaning, and nickel-plated copper alloy contacts. Rated for 2A current, it withstands temperatures from -55°C to +105°C and accommodates reflow soldering processes, making it ideal for reliable electronic connections.
3M N25646002RB Header Connector Specifications:
- Insulator Material: Glass Filled Polyester, UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel overall, Gold on wiping area, Matte Tin on solder tails
- Current Rating: 2A
- Insulation Resistance: >1 x 10^9 Q at 500 Vdc
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: Max 260°C, single pass (per J-STD-020C)
- Moisture Sensitivity Level: 1 (per J-STD-020C)
- RoHS compliant
Buy the 3M N25646002RB – Reliable Header for Industrial Applications
Purchase the 3M Header Connector online today to ensure high-quality, reliable connections for your industrial and electronic projects. Designed with durability, polarization features, and high-temperature insulators, this component guarantees compatibility and secure fastening in vibration-prone environments. Its RoHS compliance and exposed solder tails simplify assembly and maintenance, reducing repair costs. With a robust rated current of 2A and temperature capabilities from -55°C to +105°C, it is ideal for demanding industrial and PCB applications. Buy now to benefit from quick delivery and trusted quality.
Get 3M N25646002RB today—built for precision and long-lasting durability in electronic connection solutions.
Frequently Asked Questions
Where can I buy 3M N25646002RB?
You can click on the BUY or RFQ button to purchase N25646002RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N25646002RB?
You can download the N25646002RB datasheet or visit the 3M website for support.
Who is the manufacturer of N25646002RB?
3M
